Why Choose the ABB ZX1074 850A 40×10mm Busbar 5PW?

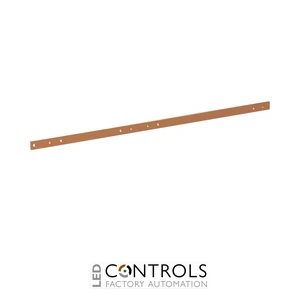

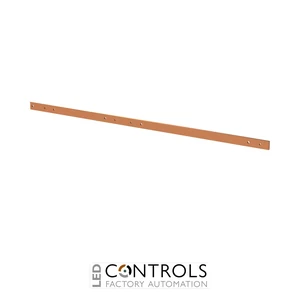

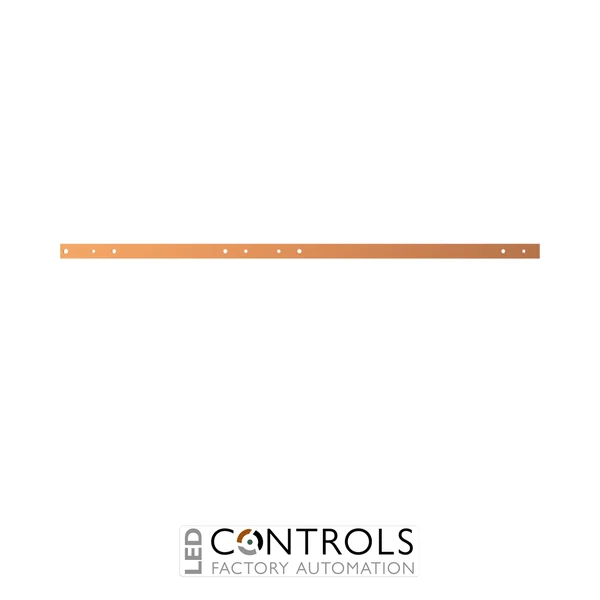

The ABB ZX1074 is a high-capacity 850 A copper busbar designed for power distribution within compatible ABB low-voltage sub-distribution assemblies. Supplied under ABB order code 2CPX041940R9999, it is an ABB A1 copper rail intended for cabinet row mounting and provides a robust conductive path for demanding distribution applications.
With a substantial 40 × 10 mm copper rail cross-section, the ZX1074 is engineered for high-current distribution duties. The busbar is configured for a 5PW arrangement, corresponding to a 5-field-width configuration, and supports structured distribution systems where continuous busbars are required across compatible cabinet modules.
The ZX1074 has a rated current of 850 A and is specified for 5 FB (3 FB + 2 FB) with a rail width of 1293 mm. Designed for cabinet row mounting to the right or left, it provides panel builders with a purpose-designed ABB component for constructing reliable high-current distribution systems.
Key Advantages
- High-capacity 850 A copper busbar for demanding power distribution.
- Substantial 40 × 10 mm copper rail cross-section.
- 5PW configuration for compatible ABB cabinet arrangements.
- Designed for cabinet row mounting to the right or left.
- Supports continuous busbar arrangements across compatible cabinet modules.
- Genuine ABB component designed for integration into low-voltage sub-distribution systems.
Key Features
- ABB ZX1074 A1 copper rail.
- 850 A rated current.
- 40 × 10 mm copper busbar section.
- 5PW / 5 FB configuration.
- 5 FB arrangement: 3 FB + 2 FB.
- 1293 mm rail width.
- Suitable for right- or left-hand cabinet row mounting.
- Designed for compatible ABB low-voltage sub-distribution assemblies.
Reliable High-Current Distribution for Cabinet Systems
Copper busbars provide a low-resistance conductive path for distributing high electrical currents through switchboards and distribution assemblies. Their rigid construction enables organised power-distribution layouts and can simplify connections between compatible cabinet sections compared with extensive individual high-current cabling.
The ABB ZX1074 is specifically designed as an A1 copper rail for cabinet row mounting. Its 850 A current rating, 40 × 10 mm cross-section and 5 FB configuration make it particularly suitable for substantial low-voltage distribution duties where reliable current carrying capacity and compatibility with ABB cabinet systems are essential.
Typical Applications
- High-current low-voltage distribution boards.
- Industrial and commercial sub-distribution systems.
- Cabinet-to-cabinet power distribution arrangements.
- Continuous busbar systems in compatible ABB assemblies.
- Electrical switchboards and distribution cabinets.
- Panel building and low-voltage system integration.
