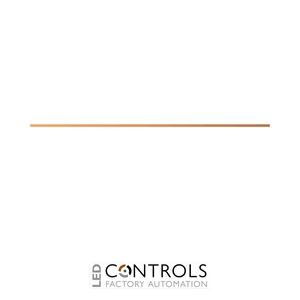

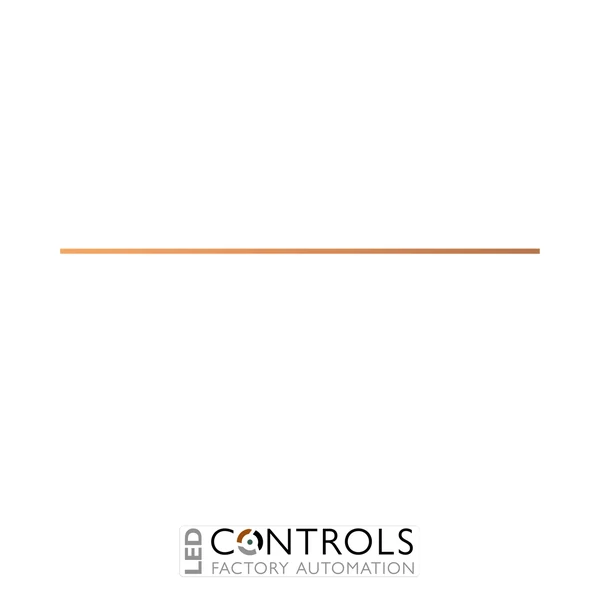

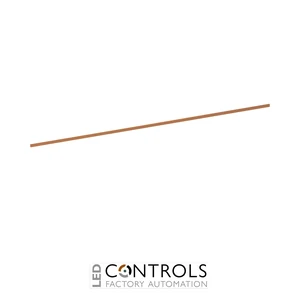

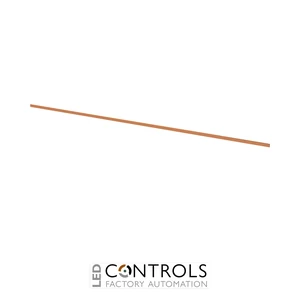

ABB ZX1083 2CPX041945R9999 is a 4PW A2 copper busbar with a 12 × 5 mm cross-section and 250 A rated current for right or left cabinet row mounting in compatible ABB electrical sub-distribution systems.
The ABB ZX1083, order code 2CPX041945R9999, is a copper A2 busbar designed for ABB electrical sub-distribution systems. As part of the ABB DESUJ Sub Distribution product group, it provides a robust conductor rail for professional low-voltage distribution assemblies requiring reliable current distribution.
The ZX1083 uses a 12 × 5 mm copper busbar cross-section and is rated for 250 A. Its A2 configuration is designed for cabinet row mounting on the right or left, providing panel builders with a practical solution for structured busbar distribution across compatible ABB cabinet assemblies.
Designed for a 4 PW installation width, the ZX1083 has a busbar length of approximately 1090 mm. This combination of current capacity, conductor size and installation width makes it suitable for larger distribution assemblies where a continuous copper rail is required across four panel widths.
Key Advantages
Rated for 250 A electrical distribution applications.
Robust 12 × 5 mm copper busbar construction.
4 PW configuration for wider distribution assemblies.
Designed as an A2 busbar for right or left cabinet row mounting.
Provides a rigid common conductor for organised electrical distribution.
Designed for professional ABB sub-distribution and panel-building applications.
Key Features
ABB ZX1083 copper busbar.
250 A rated current.
4 PW installation width.
Approximately 1090 mm busbar length.
12 × 5 mm busbar cross-section.
A2 copper rail configuration.
Designed for cabinet row mounting.
Suitable for mounting on the right or left side of compatible cabinet arrangements.
Rigid conductor design for structured panel distribution.
Designed for compatible ABB electrical sub-distribution systems.
Reliable Busbar Distribution for Cabinet Row Assemblies
Copper busbars provide a common low-resistance conductor for distributing electrical current within switchboards and sub-distribution equipment. A rigid busbar arrangement supports organised panel construction while providing a durable electrical path across compatible cabinet sections.
The ABB ZX1083 combines a 12 × 5 mm copper conductor with a 250 A rating and 4 PW installation format. Its A2 configuration is specifically suited to right or left cabinet row mounting, making it a practical component for compatible ABB modular distribution assemblies.
Typical Applications
Electrical sub-distribution boards.
ABB modular distribution assemblies.
Cabinet row mounting applications.
Right or left busbar installations.
Commercial and industrial electrical distribution panels.
Switchboard and professional panel-building applications.
Technical Specifications
Tick the specs you need, then view products that match.
Length (mm)
1090 mm
Product Series
ABB S&J system
Device Type
Busbar
Rail / Busbar Profile
12 × 5 mm
Order code
2CPX041945R9999
Product group
DESUJ Sub Distribution
Product type
Copper A2 busbar
Rated current
250 A
Installation width
4 PW
Busbar length
approx. 1090 mm
Busbar cross-section
12 × 5 mm
Busbar width
12 mm
Busbar thickness
5 mm
Material
Copper
Rail configuration
A2
Mounting arrangement
Cabinet row mounting, right or left
Application
Electrical sub-distribution systems
Frequently Asked Questions
What is the ABB ZX1083 used for?
The ABB ZX1083 is an A2 copper busbar designed for electrical distribution and right or left cabinet row mounting within compatible ABB sub-distribution assemblies.
What size is the ABB ZX1083 busbar?
The ZX1083 has a copper conductor cross-section of 12 × 5 mm and a length of approximately 1090 mm.
What is the rated current of the ABB ZX1083?
The ABB ZX1083 is rated for 250 A within its specified ABB electrical distribution system configuration.
What installation width is the ABB ZX1083 designed for?
The ZX1083 is designed for a 4 PW installation width, making it suitable for compatible wider cabinet and distribution assemblies.
Where can the ABB ZX1083 be mounted?
The ZX1083 is an A2 busbar designed for cabinet row mounting on either the right or left within compatible ABB electrical distribution systems.
