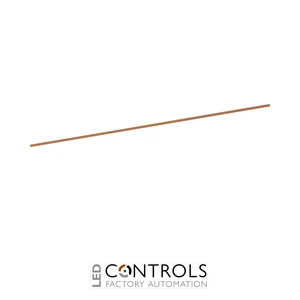

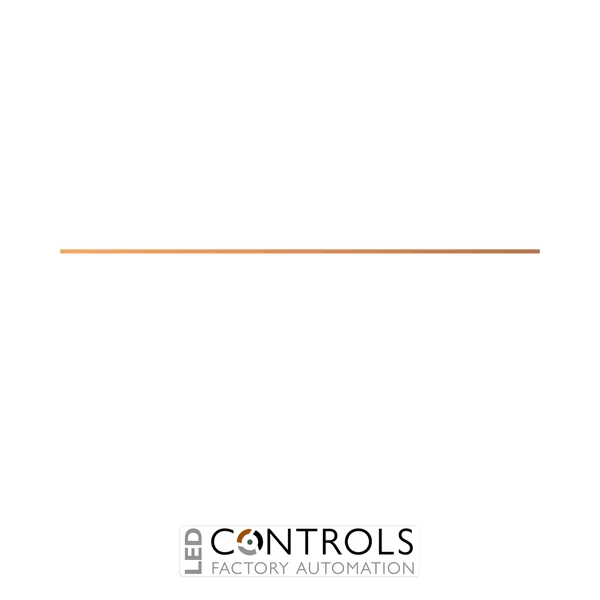

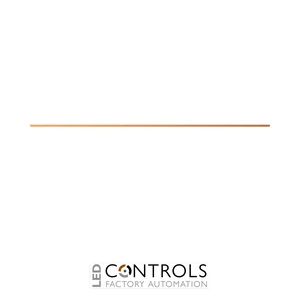

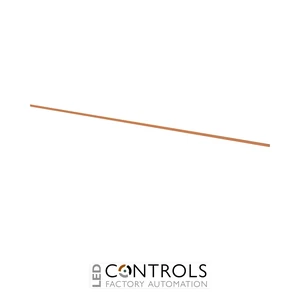

ABB ZX1084 2CPX041946R9999 is a 5PW A2 copper busbar with a 12 × 5 mm cross-section, 1345 mm length and 250 A rated current for compatible ABB CombiLine cabinet row distribution systems.
The ABB ZX1084, order code 2CPX041946R9999, is a copper A2 busbar designed for ABB CombiLine electrical sub-distribution systems. As part of the ABB DESUJ Sub Distribution product group, it provides a robust conductor rail for professional low-voltage distribution assemblies requiring reliable current distribution.
The ZX1084 uses a 12 × 5 mm copper busbar cross-section and has a rated current of 250 A. Its A2 configuration is designed for cabinet row mounting on the right and left, supporting structured busbar arrangements across compatible ABB distribution cabinets.
Designed for a 5 PW field width of 1350 mm, the ZX1084 has a busbar length of 1345 mm. This wide-format copper rail is particularly suited to larger distribution assemblies requiring continuous high-capacity conductor routing across five field widths.
Key Advantages
Rated for 250 A electrical distribution applications.
Robust 12 × 5 mm copper busbar construction.
5 PW configuration for wider distribution assemblies.
1345 mm busbar length for a 5 PW field arrangement.
Designed as an A2 busbar for right and left cabinet row mounting.
Supports continuous busbar arrangements across compatible module widths.
Key Features
ABB ZX1084 copper busbar.
250 A rated current.
5 PW field configuration.
1350 mm field width.
1345 mm busbar length.
12 × 5 mm busbar cross-section.
A2 copper rail configuration.
Single-pole construction.
Designed for cabinet row mounting on the right and left.
Suitable for compatible ABB CombiLine modular distribution equipment.
Supplied as an unassembled kit.
Reliable Busbar Distribution for Cabinet Row Assemblies
Copper busbars provide a common low-resistance conductor for distributing electrical current within switchboards and sub-distribution equipment. ABB's cabinet row system allows compatible module widths to be combined with continuous busbars, supporting organised and scalable distribution panel construction.
The ABB ZX1084 combines a 12 × 5 mm copper conductor with a 250 A rating and 1345 mm length. Its A2 configuration and 5 PW format make it particularly suitable for right and left cabinet row mounting within compatible ABB CombiLine electrical distribution assemblies.
Typical Applications
Electrical sub-distribution boards.
ABB CombiLine distribution systems.
Cabinet row mounting applications.
Continuous busbar distribution arrangements.
Commercial and industrial electrical distribution panels.
Switchboard and professional panel-building applications.
Technical Specifications
Tick the specs you need, then view products that match.
Length (mm)
1345 mm
Product Series
ABB CombiLine
Device Type
Busbar
Rail / Busbar Profile
12 × 5 mm
Series
CombiLine
Order code
2CPX041946R9999
Product group
DESUJ Sub Distribution
Product type
Copper A2 busbar
Rated current
250 A
Installation width
5 PW
Field width
1350 mm
Busbar length
1345 mm
Busbar cross-section
12 × 5 mm
Busbar width
12 mm
Busbar thickness
5 mm
Number of poles
1
Material
Copper
Maximum power loss
35.91 W
Gross weight
1.047 kg
Delivery form
Unassembled kit
Mounting arrangement
Cabinet row mounting, right and left
Frequently Asked Questions
What is the ABB ZX1084 used for?
The ABB ZX1084 is an A2 copper busbar designed for electrical distribution and cabinet row mounting within compatible ABB CombiLine sub-distribution assemblies.
What size is the ABB ZX1084 busbar?
The ZX1084 has a copper conductor cross-section of 12 × 5 mm and a busbar length of 1345 mm.
What is the rated current of the ABB ZX1084?
The ABB ZX1084 has a rated current of 250 A within its specified ABB electrical distribution system configuration.
What installation width is the ABB ZX1084 designed for?
The ZX1084 is designed for a 5 PW configuration with a field width of 1350 mm.
How is the ABB ZX1084 supplied?
The ZX1084 is supplied as an unassembled kit containing a single-pole A2 copper busbar for integration into compatible ABB CombiLine cabinet row assemblies.
Trusted ABB Distribution System Engineering
ABB CombiLine busbar components provide robust conductor solutions for professional electrical distribution systems, helping panel builders create organised, dependable and scalable current distribution arrangements.
