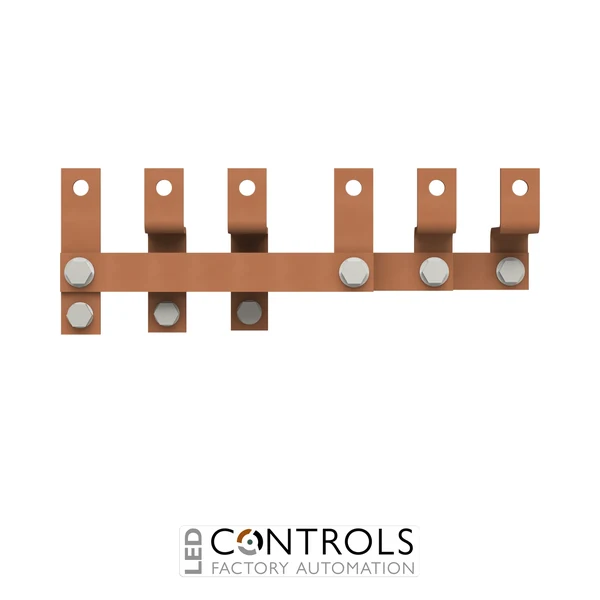

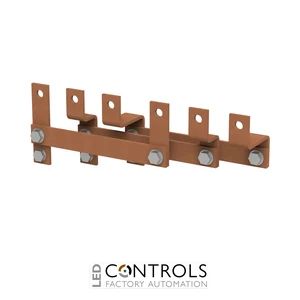

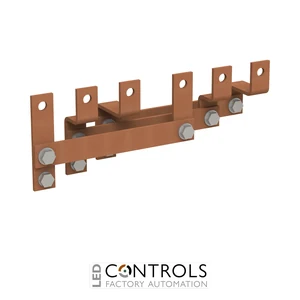

Why Choose the ABB ZH217 440 A 30 × 5 mm Busbar System?
The ABB ZH217, order code 2CPX060446R9999, is a high-capacity 3-pole copper busbar system designed for ABB CombiLine N electrical distribution assemblies. As part of ABB’s DESUJ Sub Distribution product group, it provides a reliable power distribution solution for NH1/NH2 fuse-switch disconnector modules and professional low-voltage distribution systems.
Rated for a current of 440 A, the ZH217 uses 30 × 5 mm copper busbars arranged in a single-level, 3-pole configuration. The system incorporates M10 connection screws and is intended for use with the ABB M(B)T244 module configuration, providing a purpose-designed interface for high-current distribution equipment.
The ZH217 has a busbar spacing of 57 mm and a short-time withstand current (Icw) of 25 kA. Its copper conductors, robust construction and dedicated CombiLine N compatibility make it suitable for demanding commercial and industrial sub-distribution applications where dependable high-current power distribution is required.
Key Advantages
- High-capacity 440 A busbar system for electrical distribution applications.
- 30 × 5 mm copper busbars provide reliable high-current distribution.
- 3-pole, single-level configuration for compatible NH1/NH2 assemblies.
- 25 kA short-time withstand current (Icw) for robust distribution system performance.
- 57 mm busbar spacing for the specified ABB module arrangement.
- Purpose-designed for integration with ABB CombiLine N sub-distribution systems.
Key Features
- ABB ZH217 busbar system.
- 440 A rated current.
- 3-pole configuration.
- 30 × 5 mm copper busbars.
- Single-level busbar arrangement.
- 57 mm busbar spacing.
- 25 kA short-time withstand current (Icw).
- M10 connection screws.
- Designed for the M(B)T244 module configuration.
- Suitable for NH1/NH2 fuse-switch disconnector distribution systems.
Reliable High-Current Power Distribution
Busbar systems provide a low-resistance method of distributing electrical power between incoming supplies and multiple switching or protective devices. The ABB ZH217 uses substantial 30 × 5 mm copper conductors to provide reliable distribution at rated currents up to 440 A, while its 3-pole architecture supports three-phase electrical distribution applications.
Designed specifically for ABB CombiLine N assemblies, the ZH217 integrates with the M(B)T244 module configuration used for NH1/NH2 fuse-switch disconnector systems. Its single-level construction, 57 mm rail spacing and M10 connections provide a defined mechanical and electrical arrangement for professional switchboard and sub-distribution construction.
Typical Applications
- ABB CombiLine N sub-distribution systems.
- NH1/NH2 fuse-switch disconnector assemblies.
- Commercial and industrial distribution boards.
- Three-phase electrical power distribution.
- High-current switchboard installations.
- Professional panel building and low-voltage distribution assemblies.
