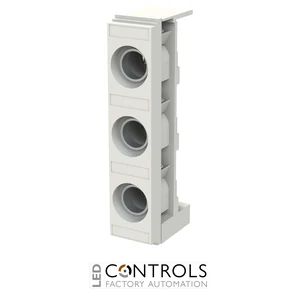

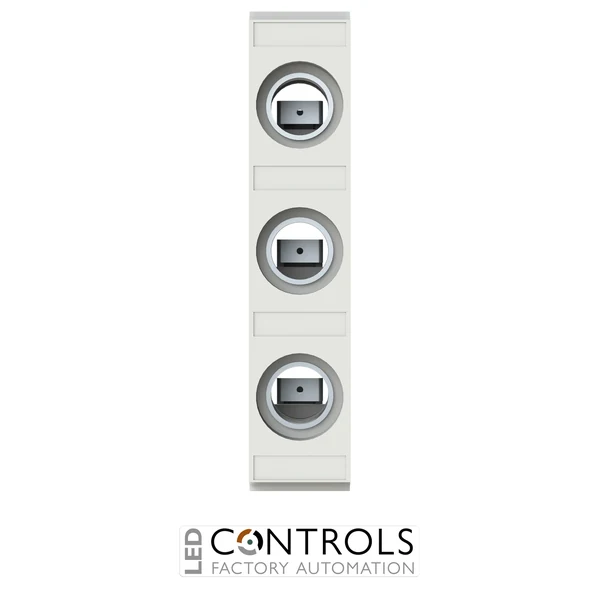

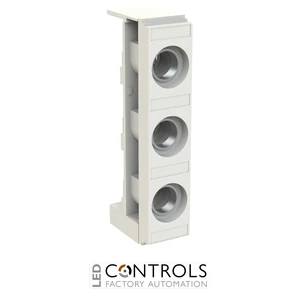

Why Choose the ABB ZE61 Busbar Mounting Fuse Base E27?
The ABB ZE61 is a compact and dependable Diazed busbar-mounting fuse base designed for fused power distribution within ABB sub-distribution assemblies. As part of the ABB DESUJ Sub Distribution range, it provides a practical solution for integrating DII fuse protection directly into compatible busbar systems.
This fuse base features a three-pole configuration and is designed for gauge ring inserts, helping ensure the correct fuse rating is used for the protected circuit. Covers and nameplates are included to support safe, organised and clearly identified installation within electrical distribution equipment.
With an E27 fuse thread, a rated current of 25 A and a compact 42 mm width, the ZE61 is well suited to three-phase sub-distribution applications requiring space-efficient Diazed fuse protection and straightforward busbar mounting.
Key Advantages
- Compact busbar-mounting fuse base for sub-distribution systems.
- Designed for Diazed DII fuses with an E27 thread.
- 25 A rated current for protected distribution circuits.
- Three-pole configuration suitable for three-phase applications.
- Designed for gauge ring inserts to support correct fuse selection.
- Supplied with covers and nameplates for organised installation and identification.
Key Features
- ABB DESUJ Sub Distribution range.
- Diazed busbar-mounting fuse socket.
- DII fuse size with E27 thread.
- 25 A rated current.
- 400 V rated voltage.
- 3-pole construction.
- 42 mm overall width.
- Designed for use with gauge ring inserts.
- Includes covers and nameplates.
Reliable Fuse Protection for Sub-Distribution Systems
Busbar-mounted fuse bases such as the ABB ZE61 provide a compact connection point for protective fuses within electrical distribution assemblies. Correctly selected Diazed fuses interrupt excessive current caused by overloads or short circuits, helping protect downstream wiring, equipment and distribution circuits.
The ZE61 is designed for integration into ABB sub-distribution equipment where compact three-pole fuse protection is required. Its E27 Diazed format, gauge ring compatibility and busbar-mounted construction support efficient installation and straightforward maintenance within modern distribution panels.
Typical Applications
- Electrical sub-distribution boards.
- Industrial distribution panels.
- Three-phase fused circuits.
- Busbar-based power distribution assemblies.
- Commercial building electrical distribution.
- Control and switchgear cabinets requiring compact fuse protection.
