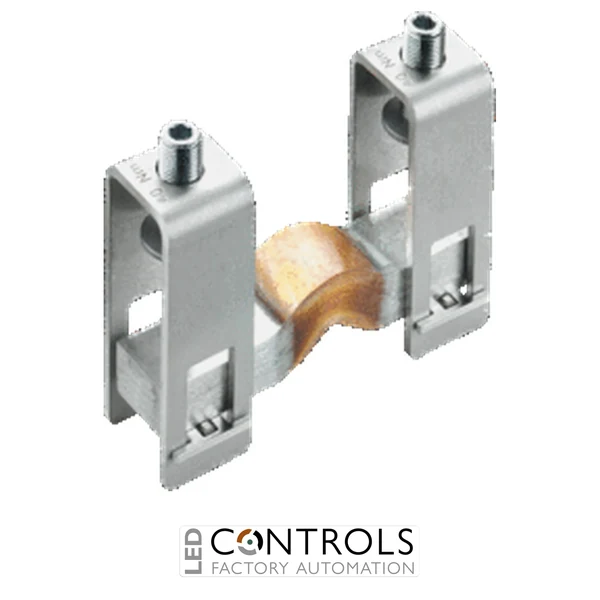

30322 Wohner connecting set 1600 A (3-pole)

30322 Wohner connecting set 1600 A (3-pole)

Wöhner 30322 flexible 3-pole longitudinal connecting set rated at 1600 A for double-T section busbars in 60Classic systems.

SKU: 30322Alt SKU: 30322000MPN: 30322
Price
List Price £712.96 ex VAT
Your Price (ex VAT)
£712.96
Manufacturer Lead Time Please contact us for a delivery time before you order
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £712.96
Trade pricing is personalised to your account

Manufacturer Lead Time

£712.96

Why Choose the Wöhner 30322 Connecting Set?

The Wöhner 30322 is a heavy-duty 3-pole flexible longitudinal connecting set rated at 1600 A, designed for joining double-T section busbars within Wöhner 60Classic busbar systems. Its 150 mm flexible connection compensates for busbar movement, installation tolerances and thermal expansion whilst maintaining a secure, low-resistance electrical connection.

Manufactured by Wöhner, the 30322 connecting set is engineered for demanding industrial power distribution applications and complies with IEC 61439-1:2020. It provides a reliable solution for extending or joining busbar systems in switchgear, motor control centres and power distribution assemblies.

Designed for the 60Classic system, the connecting set supports 1600 A operation at 690 V AC and accommodates busbar offsets whilst ensuring dependable electrical continuity between adjacent busbar sections.

Key Advantages

  • Rated for 1600 A continuous current.
  • Flexible 150 mm longitudinal connection.
  • Designed for double-T section busbars.
  • Compensates for thermal expansion and installation tolerances.
  • Suitable for Wöhner 60Classic busbar systems.
  • Manufactured from high-quality conductive materials for long service life.

Key Features

  • Manufacturer: Wöhner.
  • Part number: 30322.
  • Product type: 3-pole connecting set.
  • Rated current: 1600 A.
  • Connection length: 150 mm.
  • Flexible longitudinal design.
  • For double-T profile busbars.
  • Designed for the 60Classic system.

Flexible Busbar Connections for High Current Systems

Flexible busbar connecting sets are designed to maintain reliable electrical continuity whilst accommodating installation tolerances, vibration and thermal expansion. This helps reduce mechanical stress on busbars and improves the long-term reliability of high-current power distribution systems.

The Wöhner 30322 is specifically designed for joining double-T section busbars within the 60Classic system. Its flexible construction compensates for slight busbar misalignment whilst maintaining a secure, low-resistance electrical connection for currents up to 1600 A.

Typical Applications

  • Industrial switchgear.
  • Power distribution systems.
  • Busbar extensions.
  • Motor control centres.
  • Electrical substations.
  • OEM switchboard manufacture.

Technical Specifications

Tick the specs you need, then view products that match.

Length (mm) 150 mm
Current 1600 A
Phase Three Phase
Poles 3-pole
Manufacturer Wöhner
Model 30322
Product type Flexible longitudinal connecting set
Poles 3
Rated current 1600 A
Rated voltage (AC) 690 V
Maximum voltage 1000 V AC / 1500 V DC
Length 150 mm
Suitable for Double-T section busbars
Permissible busbar offset 2 mm
System spacing 5–50 mm
Connection M12 screw clamp
Tightening torque 36–48 Nm
Material Halogen-free
Dimensions (L × W × D) 150 × 45 × 105 mm
Standard IEC 61439-1:2020

Frequently Asked Questions

What is the Wöhner 30322 used for?

It is used to create a flexible longitudinal connection between double-T section busbars within Wöhner 60Classic busbar systems.

What current is the Wöhner 30322 rated for?

The connecting set is rated for 1600 A.

Which busbar profile is it compatible with?

It is designed specifically for double-T section busbars.

Does the connection compensate for movement?

Yes. The flexible design compensates for thermal expansion, vibration and minor installation tolerances whilst maintaining a reliable electrical connection.

Which Wöhner system is the 30322 designed for?

It is designed for use within the Wöhner 60Classic busbar system.
