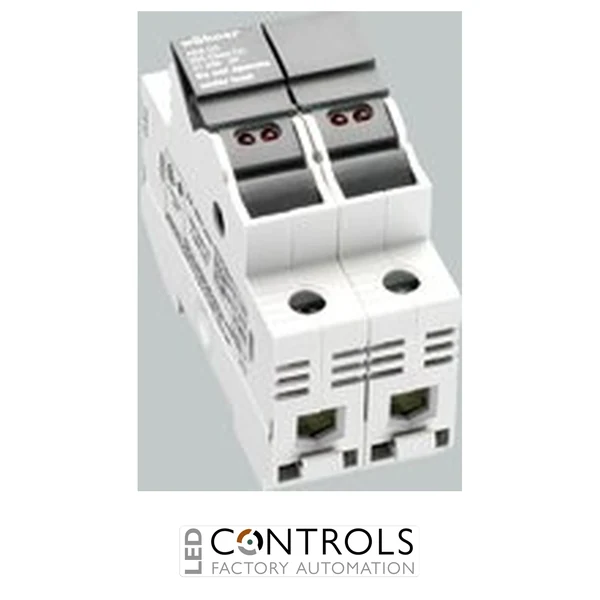

Wöhner 31299 AMBUS Panel 2-pole Class CC cylindrical fuse holder with integrated tripped-fuse LED indication, rated at 30 A and 600 V AC/DC for DIN rail mounting.
£31.24
The Wöhner 31299 is a high-performance 2-pole Class CC fuse holder with integrated LED indication, designed to provide dependable circuit protection and rapid identification of operated fuse links. Part of the established Wöhner AMBUS® Panel range, it is suitable for industrial control panels, OEM machinery and electrical distribution equipment requiring a compact UL and CSA approved fuse-holding solution.
The integrated indicator light signals when a fuse link has tripped, provided the closed fuse holder remains energised. This allows maintenance personnel to locate affected circuits more quickly, reducing troubleshooting time and helping minimise equipment downtime. The indicator is suitable for 110–600 V AC/DC systems and can be used with either DC polarity.
Rated at 30 A and 600 V AC/DC, the Wöhner 31299 accepts Class CC fuse links manufactured in accordance with UL 248-4. Its two-pole construction, DIN rail mounting and large cage clamp terminals make it a practical choice for single-phase circuits, control transformers, motor circuits and industrial automation systems.
The Wöhner 31299 combines Class CC fuse protection with a built-in indicator that helps engineers identify a tripped fuse without immediately removing the fuse link. When the holder is closed and the circuit is energised, the LED illuminates after the installed fuse has operated.
Its two-pole design is particularly suitable for single-phase and two-conductor circuits. The compact housing occupies only two modular spaces, while the large terminal capacity provides flexibility when connecting stranded, solid or ferruled copper conductors.
| Current | 30 A |
|---|---|
| Manufacturer | Wöhner |
| Series | AMBUS® Panel |
| Model | 31299 |
| Full part number | 31299 000 |
| Product type | Class CC cylindrical fuse holder with LED |
| Fuse class | Class CC |
| Fuse standard | UL 248-4 |
| Number of poles | 2 |
| Rated current | 30 A |
| Rated voltage | 600 V AC / DC |
| Minimum LED operating voltage | 110 V AC / DC |
| LED operating range | 110–600 V AC / DC |
| Rated frequency | 50 / 60 Hz |
| Short-circuit current rating | 200 kA |
| Permitted fuse-link power dissipation | 4 W |
| Typical device power loss at 80% load | 0.4 W |
| Device power loss at full load | 0.6 W |
| Protection rating | IP20 |
| Mounting type | DIN mounting rail |
| Terminal type | Cage clamp connection |
| Screw drive | PZ2 |
| Wire stripping length | 11 mm |
| Conductor capacity | 0.75 to 25 mm² copper |
| UL conductor range | AWG 18 to AWG 4 |
| Connection of two identical conductors | 0.75 to 10 mm² |
| Tightening torque | 2.0 to 2.5 Nm |
| Dimensions (W × H × D) | 36 × 81 × 58 mm |
| Weight | approx. 123 g |
| Minimum operating temperature | -40 °C |
| Material | Halogen-free |
| Suitable conductor material | Copper only |
| Approvals | UL, CSA and CCC |
| EAN | 4021267312992 |
The Wöhner 31299 is designed for Class CC cylindrical fuse links manufactured in accordance with UL 248-4.
It features a 2-pole configuration, making it suitable for protecting two conductors within the same circuit.
The indicator illuminates when an installed fuse link has tripped, provided the fuse holder is closed and the circuit remains energised.
Yes. It is rated for up to 600 V DC, and the indicator can operate with either DC polarity.
The cage clamp terminals accept copper conductors from 0.75 to 25 mm², or AWG 18 to AWG 4 in UL applications. Aluminium conductors must not be used.
Wöhner AMBUS® Panel Class CC fuse holders are trusted by panel builders, OEM manufacturers and electrical engineers for dependable circuit protection, compact installation and faster fault identification in demanding industrial systems.
