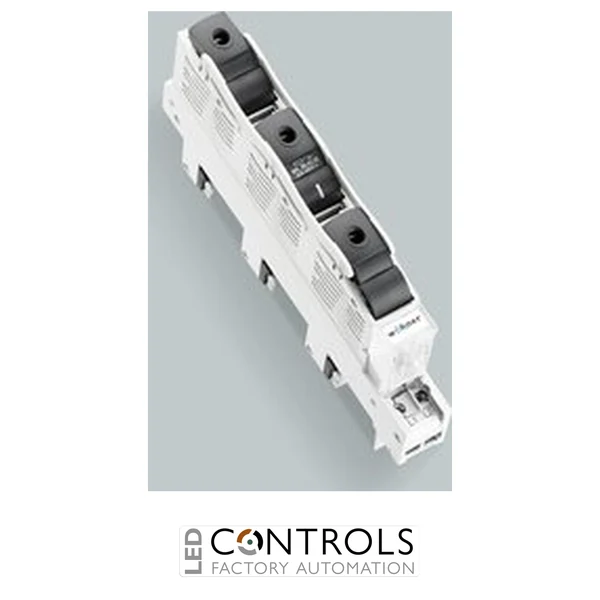

Wöhner 31525 SECUR 60Classic PowerLiner busbar-mounted switch-disconnector fuse for D01 and D02 fuse links with integrated LED indication, rated 63 A.
£129.39
The Wöhner 31525 is a high-quality SECUR® 60Classic PowerLiner D0 busbar-mounted switch-disconnector fuse designed for safe and reliable protection of three-phase industrial distribution systems. Designed for D01 and D02 fuse links, it incorporates an integrated LED indication that clearly identifies a blown fuse, helping minimise maintenance time and improve system availability.
Rated at 63 A, the Wöhner 31525 is engineered for direct installation onto 60 mm busbar systems. It supports both 3-pole and 1-pole switching, making it suitable for a wide range of industrial switchboards, motor control centres and distribution panels requiring compact, safe and efficient fused isolation.
The unit accepts D01 and D02 fuse links manufactured to IEC / HD 60269-3 and is approved to IEC 60947-1 and IEC 60947-3. It mounts directly onto busbars measuring 12, 15, 20, 25 or 30 mm wide with either 5 mm or 10 mm thicknesses, including compatible section busbars.
The Wöhner 31525 combines safe isolation and fuse protection within a compact busbar-mounted device. Its integrated LED indication enables maintenance personnel to identify a failed fuse rapidly without unnecessary testing, reducing downtime and improving maintenance efficiency in industrial electrical installations.
Designed specifically for Wöhner 60Classic systems, the switch-disconnector simplifies panel construction by mounting directly onto the busbar while providing safe switching and dependable protection for outgoing feeders and branch circuits.
| Phase | Single Phase |
|---|---|
| Manufacturer | Wöhner |
| Model | 31525 |
| Part number | 31525 000 |
| Product range | SECUR® 60Classic PowerLiner |
| Product type | Busbar-mounted switch-disconnector fuse |
| Rated current | 63 A |
| Number of poles | 3 |
| Switching | 3-pole / 1-pole |
| Fuse sizes | D01 and D02 |
| Fuse standard | IEC / HD 60269-3 |
| LED indication | Yes (blown fuse indication) |
| Connection | Bottom |
| Compatible busbars | 12, 15, 20, 25 and 30 × 5 or 10 mm, plus section busbars |
| Permitted fuse-link power dissipation | 5.5 W |
| Standards | IEC 60947-1:2020, IEC 60947-3:2020 (AC) |
| Approvals | VDE, CCC, DNV GL, EAC |
| System | 60Classic |
| Type number | SPL-D0 |
| Pack quantity | 1 |
| EAN | 4021267315252 |
The Wöhner 31525 is a busbar-mounted switch-disconnector fuse for protecting and isolating industrial branch circuits on Wöhner 60Classic busbar systems.
The device accepts both D01 and D02 fuse links manufactured in accordance with IEC / HD 60269-3.
Yes. An integrated LED provides a clear visual indication when a fuse link has operated.
The Wöhner 31525 has a maximum rated current of 63 A.
The unit mounts directly onto 60 mm busbar systems using 12, 15, 20, 25 or 30 mm busbars with 5 mm or 10 mm thicknesses, including compatible section busbars.
Wöhner SECUR® PowerLiner switch-disconnectors are trusted by panel builders, OEMs and industrial engineers for delivering safe fused isolation, rapid maintenance through LED fuse indication and dependable performance in modern busbar distribution systems.
