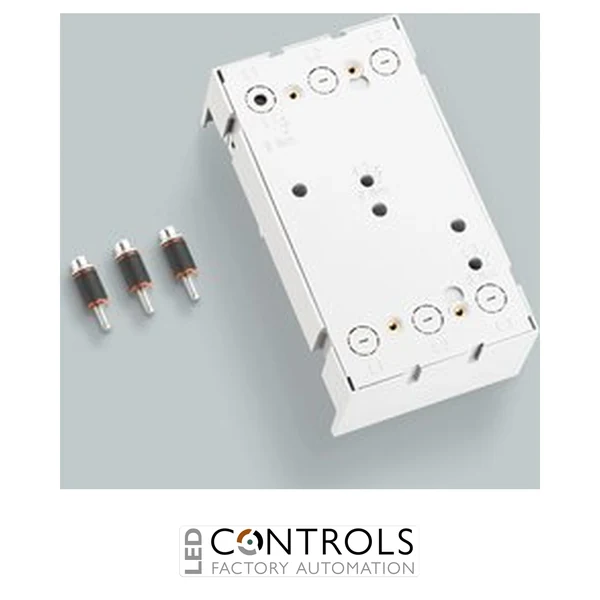

32023 Wohner busbar adapter 250 A, 3-pole

32023 Wohner busbar adapter 250 A, 3-pole

Wöhner 32023 EQUES 60Classic 250 A 3-pole busbar adapter with top or bottom connection for ABB Tmax XT4 and Allen-Bradley 140G-J circuit breakers.

SKU: 32023Alt SKU: 32023000AMPN: 32023
Price
List Price £102.82 ex VAT
Your Price (ex VAT)
£102.82
In stock. Ships today if ordered before 2pm
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £102.82
Trade pricing is personalised to your account

25 in stock (can be backordered)

£102.82

Why Choose the Wöhner 32023 Busbar Adapter?

The Wöhner 32023 is a robust 250 A, 3-pole busbar adapter from the EQUES® 60Classic range, designed to mount compatible moulded case circuit breakers directly onto Wöhner 60 mm busbar systems. It provides a reliable, space-saving solution for industrial power distribution, switchboards and control panel applications.

Designed for professional panel builders and OEM manufacturers, the adapter is compatible with ABB Tmax XT4 and Allen-Bradley 140G-J circuit breakers fitted with box terminals. Its flexible design allows top or bottom connection to the busbar system, simplifying installation while maintaining dependable electrical performance.

With a 250 A rated current, 690 V AC operating voltage and compatibility with 12, 15, 20, 25 and 30 mm busbars in both 5 mm and 10 mm thicknesses, the Wöhner 32023 offers a versatile mounting platform for modern industrial switchgear installations.

Key Advantages

  • Designed for the Wöhner EQUES® 60Classic 60 mm busbar system.
  • 250 A continuous current rating.
  • Compatible with ABB Tmax XT4 and Allen-Bradley 140G-J circuit breakers.
  • Top or bottom busbar connection for installation flexibility.
  • Reduces panel wiring while maximising cabinet space.
  • Ideal for industrial switchboards, OEM machinery and power distribution systems.

Key Features

  • Manufacturer: Wöhner.
  • Series: EQUES® 60Classic.
  • Part number: 32023.
  • Product type: Busbar adapter.
  • Rated current: 250 A.
  • Configuration: 3-pole.
  • Connection: Top or bottom connection to the system.
  • Suitable for circuit breakers with box terminals.
  • Designed for 60 mm busbar systems.

Reliable Busbar Mounting for Industrial Switchgear

Busbar adapters provide a safe and efficient method of mounting moulded case circuit breakers directly onto busbar systems while reducing wiring complexity and installation time. This improves accessibility, simplifies maintenance and makes better use of available cabinet space.

The Wöhner 32023 forms part of the proven EQUES® 60Classic platform, delivering dependable electrical performance and flexible integration into modern industrial switchboards and low-voltage distribution systems.

Typical Applications

  • Industrial switchboards.
  • Power distribution panels.
  • Motor control centres.
  • Machine building.
  • OEM electrical equipment.
  • Industrial automation systems.

Technical Specifications

Tick the specs you need, then view products that match.

Busbar Centre Distance (mm) 60 mm
Product Series Wöhner 60Classic
Device Type Component adapter
Current 250 A
Phase Three Phase
Poles 3-pole
Manufacturer Wöhner
Series EQUES® 60Classic
Model 32023
Product type Busbar adapter
Rated current 250 A
Rated voltage 690 V AC
Rated insulation voltage (Ui) 800 V AC
Rated impulse withstand voltage (Uimp) 6 kV
Number of poles 3
Connection to system Top or bottom
Compatible circuit breakers ABB Tmax XT4, Allen-Bradley 140G-J
Compatible busbars 12, 15, 20, 25, 30 mm × 5 or 10 mm and section busbars
Dimensions (W × H × D) 105 × 190 × 35 mm
Weight Approx. 1.22 kg

Frequently Asked Questions

What is the Wöhner 32023 used for?

The Wöhner 32023 is a 250 A busbar adapter designed for mounting compatible moulded case circuit breakers directly onto Wöhner 60Classic busbar systems.

Which circuit breakers are compatible?

It is designed for ABB Tmax XT4 and Allen-Bradley 140G-J circuit breakers equipped with box terminals.

What is the current rating?

The adapter has a continuous current rating of 250 A.

Can it be connected from the top or bottom?

Yes. The Wöhner 32023 supports both top and bottom connection to the busbar system.

Which busbar sizes are supported?

It is suitable for 12, 15, 20, 25 and 30 mm busbars with 5 mm or 10 mm thicknesses, including section busbars.

Trusted by Panel Builders Worldwide

Wöhner EQUES® busbar adapters are trusted by panel builders and industrial engineers for their reliable installation, robust construction and seamless integration into modern low-voltage power distribution systems.
