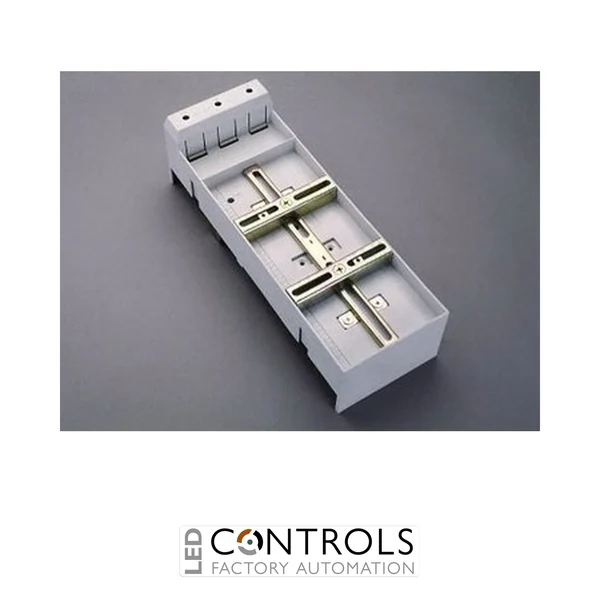

Wöhner 32168 EQUES 60Classic 250 A universal 3-pole busbar adapter with 35–120 mm² top terminals for 60 mm busbar systems.
£61.60
The Wöhner 32168 is a heavy-duty 250 A, 3-pole universal busbar adapter from the EQUES® 60Classic range. Designed for mounting a wide variety of commercially available switching devices with M4 fixing screws directly onto a 60 mm busbar system, it provides a versatile and space-saving solution for industrial switchboards and power distribution assemblies.
Featuring 35–120 mm² top-mounted box terminals, the adapter enables straightforward cable termination while reducing conventional panel wiring. Its movable fastening rails with M4 slide nuts provide flexible positioning for secure installation of compatible switchgear.
With a 250 A rated current, 690 V AC operating voltage and compatibility with busbars measuring 12, 15, 20, 25 and 30 mm wide in 5 mm or 10 mm thicknesses, including section busbars, the Wöhner 32168 is ideal for professional low-voltage power distribution systems.
Universal busbar adapters provide an efficient method of mounting switching devices directly onto busbar systems while reducing conventional wiring. This approach improves accessibility, simplifies maintenance and creates cleaner, more organised switchboard layouts.
The Wöhner 32168 is designed for demanding industrial applications requiring dependable electrical performance and flexible device installation. Its adjustable fastening system allows a broad range of compatible switching devices to be securely mounted within modern low-voltage distribution panels.
| Current | 250 A |
|---|---|
| Manufacturer | Wöhner |
| Series | EQUES® 60Classic |
| Model | 32168 |
| Product type | Universal busbar adapter |
| Rated current (IEC) | 250 A |
| Rated voltage (IEC) | 690 V AC |
| Rated insulation voltage (Ui) | 800 V AC |
| Rated impulse withstand voltage (Uimp) | 6 kV |
| Peak withstand current (Ipk) | 55.8 kA |
| Number of poles | 3 |
| Connection to system | Top |
| Terminal size | 35–120 mm² |
| Compatible busbars | 12, 15, 20, 25 and 30 × 5 or 10 mm, including section busbars |
| Dimensions (W × H × D) | 110 × 320 × 101 mm |
| Halogen-free | Yes |
| Standards | IEC 61439-1:2020, UL 508 |
| Approvals | UL, CSA, DNV GL |
The Wöhner 32168 is a universal 250 A busbar adapter for mounting compatible switching devices directly onto Wöhner 60Classic busbar systems.
The adapter features top-mounted box terminals suitable for conductors from 35 mm² to 120 mm².
The Wöhner 32168 has a continuous IEC rated current of 250 A.
It fits 12, 15, 20, 25 and 30 mm busbars with 5 mm or 10 mm thicknesses, including section busbars.
The adapter incorporates movable fastening rails with M4 slide nuts for secure mounting of compatible switching devices.
Wöhner EQUES® busbar adapters are trusted by panel builders and industrial electrical engineers for reliable installation, flexible equipment mounting and efficient low-voltage power distribution.
