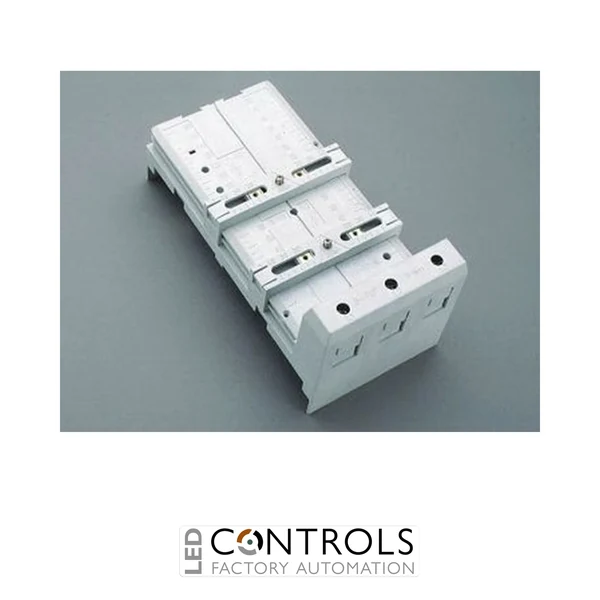

Why Choose the Wöhner 32215 Universal Busbar Adapter?
The Wöhner 32215 is a versatile 200 A, 3-pole universal busbar adapter from the EQUES® 60Classic range. Designed for mounting commercially available switching devices with M4 fixing screws directly onto a 60 mm busbar system, it provides a compact, reliable and space-saving solution for industrial switchboards and low-voltage power distribution panels.
Featuring 6–70 mm² bottom-entry terminals, the adapter enables efficient cable termination while reducing conventional panel wiring. Its movable fastening rails with M4 slide nuts provide flexible positioning for secure installation of compatible switchgear, helping to simplify panel assembly and maintenance.
With a 200 A rated current, 690 V AC operating voltage and compatibility with busbars measuring 12, 15, 20, 25 and 30 mm wide in 5 mm or 10 mm thicknesses, including section busbars, the Wöhner 32215 is ideal for demanding industrial electrical installations.
Key Advantages
- Universal 200 A busbar adapter for industrial switchgear.
- Designed for the Wöhner EQUES® 60Classic 60 mm busbar system.
- 6–70 mm² bottom-entry terminals simplify cable connections.
- Movable fastening rails with M4 slide nuts allow flexible device mounting.
- Reduces panel wiring and speeds up installation.
- Suitable for a wide range of commercially available switching devices.
Key Features
- Manufacturer: Wöhner.
- Series: EQUES® 60Classic.
- Part number: 32215.
- Product type: Universal busbar adapter.
- Rated current: 200 A.
- Configuration: 3-pole.
- Connection to system: Bottom.
- Terminal capacity: 6–70 mm².
- Suitable for commercially available switchgear with M4 fixing screws.
Flexible Mounting for Industrial Power Distribution
Universal busbar adapters provide an efficient method of mounting switching devices directly onto busbar systems while reducing conventional wiring. This approach improves accessibility, simplifies maintenance and creates cleaner, more organised switchboard layouts.
The Wöhner 32215 is designed for demanding industrial applications requiring dependable electrical performance and flexible device installation. Its adjustable fastening system allows a broad range of compatible switching devices to be securely mounted within modern low-voltage distribution panels.
Typical Applications
- Industrial switchboards.
- Main and sub-distribution panels.
- Motor control centres.
- OEM machinery and equipment.
- Industrial automation systems.
- Commercial low-voltage power distribution.
