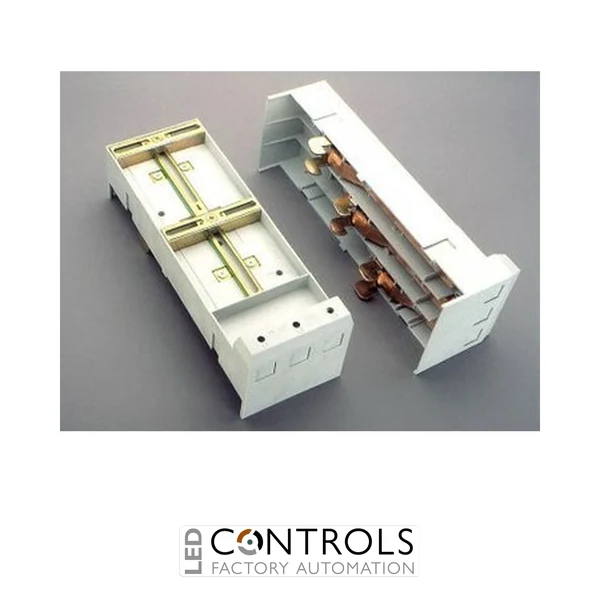

Wöhner 32216 EQUES 60Classic 250 A three-pole universal busbar adapter with 35–120 mm² bottom-entry terminals for industrial 60 mm busbar systems.
£62.25
The Wöhner 32216 is a heavy-duty 250 A, 3-pole universal busbar adapter from the EQUES® 60Classic range. Designed for mounting compatible commercially available switching devices directly onto a 60 mm busbar system, it provides a flexible and space-efficient solution for industrial switchboards, control panels and low-voltage distribution assemblies.
The adapter features 35–120 mm² bottom-entry terminals, allowing suitably sized conductors to be connected from below. Movable fastening rails with M4 slide nuts support secure and adjustable positioning of compatible switching devices, helping panel builders create organised installations without relying on extensive conventional wiring.
With an IEC rated current of 250 A, an operating voltage of 690 V AC and compatibility with flat busbars from 12 to 30 mm wide in 5 mm or 10 mm thicknesses, the Wöhner 32216 is engineered for dependable integration into demanding industrial power distribution systems.
Universal busbar adapters provide an efficient method of mounting compatible switching devices directly onto a structured power distribution system. This approach can reduce cable routing, simplify panel assembly and improve access to equipment during inspection and maintenance.
The bottom-entry terminal arrangement of the Wöhner 32216 is particularly useful where incoming or outgoing conductors are routed beneath the adapter. Its adjustable fastening rails provide flexibility when positioning suitable switching devices, while the 250 A current capacity supports demanding feeder and distribution applications.
A minimum clearance of 10 mm should be maintained above the adapter so that it can be removed from the busbar system when required. Final conductor selection, equipment compatibility and installation conditions should be verified against the applicable Wöhner documentation and electrical design requirements.
| Current | 250 A |
|---|---|
| Manufacturer | Wöhner |
| Series | EQUES® 60Classic |
| Model | 32216 |
| Full part number | 32216 000 |
| Product type | Universal busbar adapter |
| Rated current (IEC) | 250 A |
| Rated voltage (IEC) | 690 V AC |
| Rated insulation voltage (Ui) | 800 V AC |
| Rated impulse withstand voltage (Uimp) | 6 kV |
| Maximum permitted DC voltage | 800 V DC |
| Rated current (UL) | 250 A |
| Rated voltage (UL) | 600 V AC |
| Rated frequency | 50/60 Hz |
| Unprotected SCCR | 10 kA at 600 V AC |
| Number of poles | 3 |
| Connection to the system | Bottom |
| Terminal range | 35–120 mm² |
| Compatible busbars | 12, 15, 20, 25 and 30 × 5 or 10 mm, including section busbars |
| Dimensions (W × H × D) | 110 × 320 × 51 mm |
| Minimum permitted operating temperature | -40°C |
| Halogen-free | Yes |
| EAN | 4021267322168 |
| Standards | IEC 61439-1:2020 and UL 508 |
| Approvals | CSA, UL and DNV GL |
The Wöhner 32216 is a universal 250 A busbar adapter used to mount compatible switching devices directly onto a Wöhner 60Classic busbar system.
The adapter has bottom-entry terminals suitable for conductors from 35 mm² to 120 mm².
The adapter has an IEC and UL rated current of 250 A.
The Wöhner 32216 connects to the busbar system from the bottom and also has bottom-entry device terminals.
It is suitable for 12, 15, 20, 25 and 30 mm wide busbars with 5 mm or 10 mm thicknesses, including compatible section busbars.
Compatible switching devices are secured using movable fastening rails with M4 slide nuts, allowing the mounting position to be adjusted for the selected equipment.
Wöhner EQUES® busbar adapters are trusted by panel builders and industrial electrical engineers for flexible equipment mounting, dependable electrical integration and efficient low-voltage power distribution.
