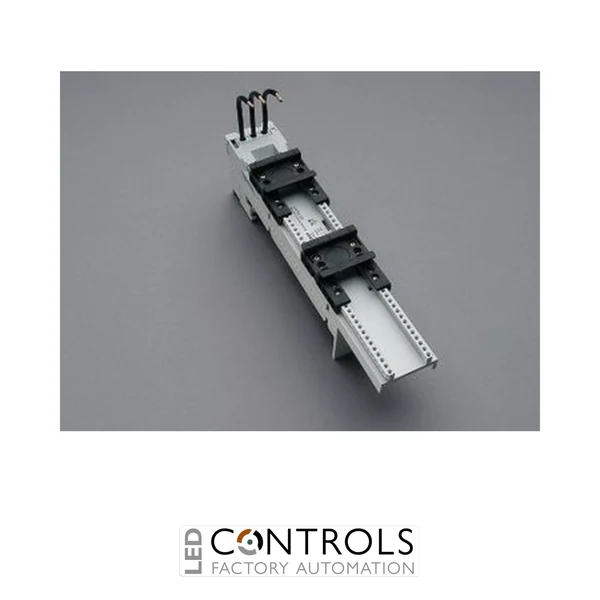

Wöhner 32402 EQUES 60Classic 25 A three-pole busbar adapter with two adjustable mounting rails, removable upper section and CrossLink Technology.
£45.84
The Wöhner 32402 is a heavy-duty 25 A busbar adapter designed for the secure mounting and connection of modular electrical devices within the Wöhner EQUES 60Classic busbar system. Featuring two adjustable mounting rails and a removable upper section, it enables fast installation, simple maintenance and flexible equipment positioning in industrial control panels and switchgear assemblies.
The adapter incorporates CrossLink® Technology, providing a reliable click-on connection to compatible busbar systems while leaving the touch-safe base mounted during servicing. Factory-fitted AWG 12 (4 mm²) leads with ultrasonically sealed conductor ends improve electrical reliability and help minimise installation time.
With a 25 A IEC rated current, 690 V AC rated voltage and compatibility with busbars measuring 12, 15, 20, 25 and 30 mm wide by 5 or 10 mm thick, the Wöhner 32402 is ideal for compact industrial power distribution and automation systems.
The Wöhner 32402 provides a dependable solution for integrating electrical control devices into modern busbar systems. Its removable upper section allows rapid servicing while the touch-protected base remains securely attached to the busbar, reducing downtime during maintenance.
CrossLink® Technology and the integrated click mechanism simplify installation while ensuring a secure mechanical and electrical connection. This makes the adapter well suited to OEM machinery, industrial automation equipment and power distribution panels.
| Current | 25 A |
|---|---|
| Phase | Three Phase |
| Manufacturer | Wöhner |
| Series | EQUES 60Classic |
| Model | 32402 |
| Full part number | 32402 000 |
| Product type | Busbar adapter |
| Number of poles | 3 |
| Rated current (IEC) | 25 A |
| Rated voltage (IEC) | 690 V AC |
| Rated insulation voltage | 800 V AC |
| Rated impulse withstand voltage | 6 kV |
| Rated current (UL) | 25 A |
| Rated voltage (UL) | 600 V AC |
| Rated frequency | 50 / 60 Hz |
| Leads | AWG 12 (4 mm²) |
| Mounting rails | 2 adjustable |
| Upper section | Removable |
| Dimensions (W × H × D) | 45 × 260 × 75 mm |
| Suitable busbar widths | 12, 15, 20, 25 and 30 mm |
| Suitable busbar thickness | 5 mm and 10 mm |
| Compatible busbars | Flat and section busbars |
| Standards | IEC 61439-1:2020, UL 508 |
| Approvals | CSA, UL, DNV GL |
| Halogen free | Yes |
| EAN | 4021267324025 |
The Wöhner 32402 is used to mount and connect modular electrical devices onto Wöhner 60Classic busbar systems.
The adapter has a 25 A IEC rated current.
Yes. The removable upper section simplifies installation, servicing and component replacement while the base remains mounted on the busbar.
The Wöhner 32402 supports busbars measuring 12, 15, 20, 25 or 30 mm wide and either 5 or 10 mm thick, including compatible section busbars.
It incorporates CrossLink® Technology with a click-on mechanism for fast and secure installation.
Wöhner EQUES 60Classic busbar adapters are trusted by switchgear manufacturers and automation engineers for delivering reliable, space-efficient power distribution solutions in demanding industrial environments.
