Why Choose the Wöhner 32416 EQUES 60Classic Busbar Adapter?

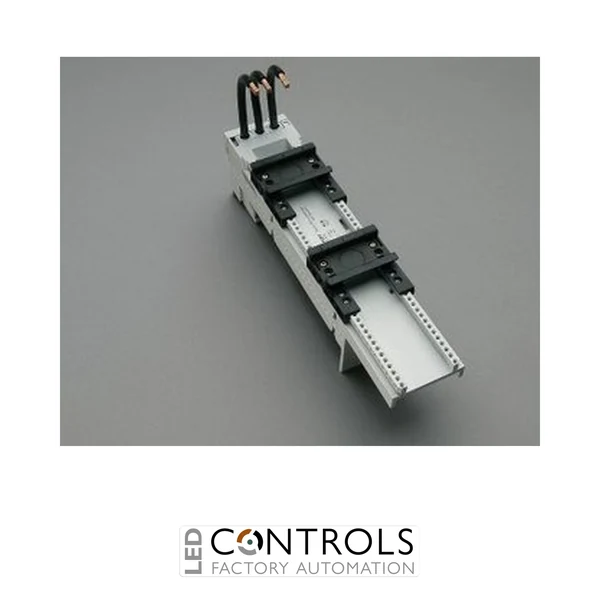

The Wöhner 32416 is a robust 45 A three-pole busbar adapter designed for mounting complete motor starter assemblies onto the Wöhner EQUES 60Classic busbar system. Featuring two adjustable mounting rails, a removable upper section and integrated CrossLink® Technology, it provides a compact, safe and service-friendly solution for industrial control panels and power distribution systems.
Supplied with factory-fitted AWG 8 (10 mm²) leads with ultrasonically sealed conductor ends, the adapter enables rapid installation while ensuring reliable electrical performance. The click-on mounting mechanism provides a secure connection to compatible busbars, helping reduce assembly time for panel builders and OEM machine manufacturers.
With a 45 A IEC rated current, a 690 V AC rated voltage and compatibility with busbars measuring 12, 15, 20, 25 and 30 mm wide by 5 or 10 mm thick, the Wöhner 32416 is ideally suited to industrial motor control and power distribution applications.
Key Advantages
- High-performance 45 A busbar adapter for industrial control systems.
- Two adjustable mounting rails provide flexible equipment positioning.
- Removable upper section enables easier maintenance and testing.
- CrossLink® Technology delivers fast, secure installation.
- Factory-fitted AWG 8 (10 mm²) leads minimise wiring time.
- Compatible with a wide range of Wöhner 60Classic busbar configurations.
Key Features
- Wöhner EQUES 60Classic series.
- 45 A three-pole busbar adapter.
- Two adjustable mounting rails.
- Removable upper section.
- CrossLink® interface.
- Factory-fitted AWG 8 (10 mm²) leads.
- Click-on installation mechanism.
- Halogen-free construction.
Efficient Integration for Motor Control Assemblies
The Wöhner 32416 enables complete motor circuits to be mounted directly onto the 60Classic busbar system, providing a compact and organised installation while reducing conventional wiring. The removable upper section can be moved into a mechanically locked test position that safely disconnects the assembly from the primary energy supply, simplifying servicing and maintenance.
CrossLink® Technology, ultrasonically sealed conductor ends and the integrated click mechanism provide dependable electrical performance while helping panel builders reduce installation time and improve assembly efficiency.
Typical Applications
- Industrial switchgear assemblies.
- Motor control centres.
- Machine control panels.
- OEM automation equipment.
- Industrial power distribution systems.
- Wöhner 60Classic busbar installations.
