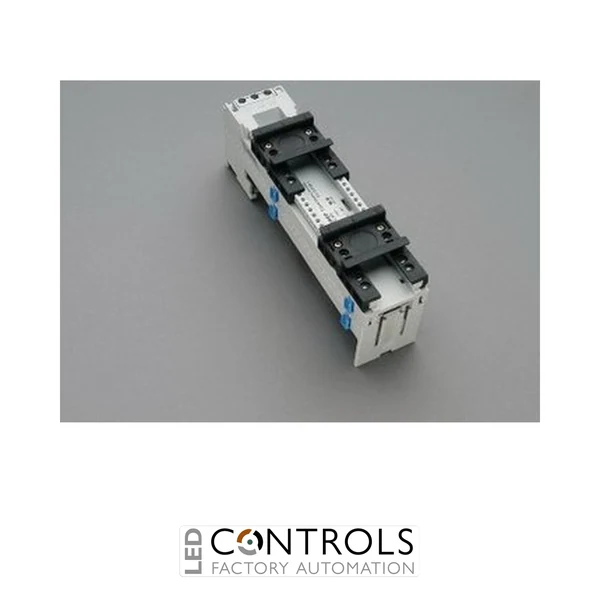

Wöhner 32421 EQUES 60Classic busbar component support with two adjustable mounting rails, removable upper section and CrossLink Technology. Mechanical support only with no electrical connection.
£42.14
The Wöhner 32421 is a busbar component support from the EQUES 60Classic range, designed to provide a secure mechanical mounting platform for electrical devices installed on Wöhner busbar systems. Unlike powered busbar adapters, this component support does not provide an electrical connection, making it ideal for applications where only mechanical support is required.
The support features two adjustable mounting rails, a removable upper section and integrated CrossLink® Technology, allowing quick installation and straightforward servicing. The touch-safe base remains mounted on the busbar while the removable upper section enables easy installation or replacement of mounted equipment.
Suitable for 12, 15, 20, 25 and 30 mm flat busbars with 5 mm or 10 mm thicknesses, as well as section busbars, the Wöhner 32421 provides a flexible, space-saving mounting solution for industrial control panels, automation equipment and switchgear assemblies.
The Wöhner 32421 is designed specifically for applications where electrical devices require a secure mounting platform without any electrical connection to the busbar. The removable upper section allows equipment to be installed or serviced quickly while the touch-safe base remains securely fixed to the busbar system.
Its wider 54 mm format, adjustable mounting rails and CrossLink® interface make it ideal for larger control devices requiring additional mounting space while maintaining a neat, modular panel layout.
| Manufacturer | Wöhner |
|---|---|
| Series | EQUES 60Classic |
| Model | 32421 |
| Full part number | 32421 000 |
| Type number | EMC6000-L |
| Product type | Busbar component support |
| Electrical connection | None (mechanical support only) |
| CrossLink® Technology | Yes |
| Mounting rails | 2 adjustable |
| Upper section | Removable |
| Rated voltage (IEC) | 690 V AC |
| Rated insulation voltage | 800 V AC |
| Rated impulse withstand voltage | 6 kV |
| Rated voltage (UL) | 600 V AC |
| Rated frequency (UL) | 50 / 60 Hz |
| Power dissipation | 0 W |
| Minimum operating temperature | −40 °C |
| Dimensions (W × H × D) | 54 × 200 × 75 mm |
| Weight | Approx. 0.388 kg |
| Suitable busbar widths | 12, 15, 20, 25 and 30 mm |
| Suitable busbar thickness | 5 mm and 10 mm |
| Compatible busbars | Flat and section busbars |
| Standards | IEC 61439-1:2020, UL 508 |
| Approvals | CSA, UL and DNV GL |
| Suitable for UL feeder circuits >250 V | Yes |
| Halogen free | Yes |
| EAN | 4021267324216 |
The Wöhner 32421 provides secure mechanical mounting for electrical devices on Wöhner 60Classic busbar systems without making an electrical connection.
No. It is a busbar component support only and has no electrical contact or current-carrying function.
Yes. The removable upper section allows convenient installation and servicing while the touch-safe base remains attached to the busbar.
It supports flat and section busbars measuring 12, 15, 20, 25 or 30 mm wide with thicknesses of 5 mm or 10 mm.
Yes. The Wöhner 32421 incorporates CrossLink® Technology for quick installation onto compatible Wöhner 60Classic busbar systems.
Wöhner EQUES 60Classic component supports provide a dependable mechanical mounting solution for industrial control systems, allowing equipment to be securely installed without creating an electrical connection.
