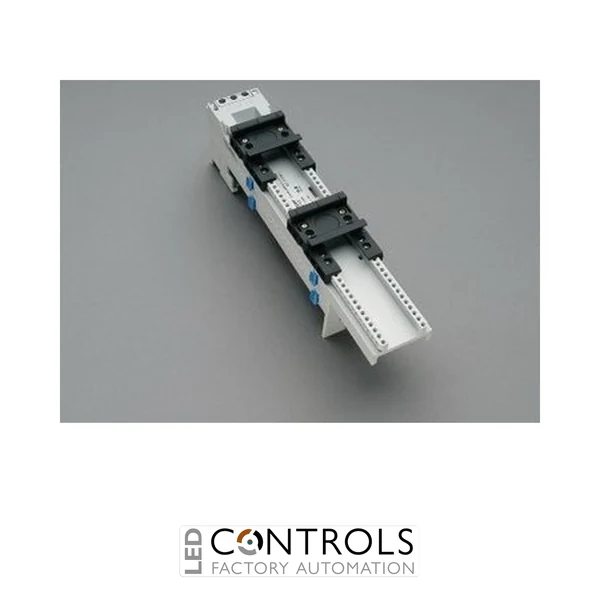

Why Choose the Wöhner 32426 EQUES 60Classic Busbar Component Support?
The Wöhner 32426 is a busbar component support from the EQUES 60Classic range, designed to provide a secure mechanical mounting platform for electrical devices on Wöhner busbar systems. Unlike powered busbar adapters, this component support does not provide an electrical connection, making it ideal for applications where only mechanical support is required.
Featuring two adjustable mounting rails, a removable upper section and integrated CrossLink® Technology, the support enables fast installation and straightforward servicing. The touch-protected base remains mounted to the busbar while the removable upper section allows mounted equipment to be installed or replaced with minimal disruption.
Designed for 12, 15, 20, 25 and 30 mm flat busbars with 5 mm or 10 mm thicknesses, as well as compatible section busbars, the Wöhner 32426 provides a flexible, space-saving solution for industrial control panels, automation systems and switchgear assemblies.
Key Advantages
- Provides secure mechanical mounting without electrical contact.
- Two adjustable mounting rails for flexible equipment positioning.
- Removable upper section simplifies servicing and replacement.
- Integrated CrossLink® Technology enables rapid installation.
- Touch-safe base remains mounted during maintenance.
- Compatible with the complete Wöhner 60Classic busbar system.
Key Features
- Wöhner EQUES 60Classic series.
- Busbar component support.
- No electrical connection.
- Two adjustable mounting rails.
- Removable upper section.
- CrossLink® interface.
- Suitable for flat and section busbars.
- Halogen-free construction.
Mechanical Mounting Without Electrical Contact
The Wöhner 32426 is specifically designed for applications where electrical equipment requires a secure mounting platform without making an electrical connection to the busbar. The removable upper section enables equipment to be installed or serviced quickly while the touch-safe base remains securely attached to the busbar system.
Its extended 54 × 260 mm format, adjustable mounting rails and CrossLink® interface make it particularly suitable for mounting larger control assemblies while maintaining a neat, modular and serviceable panel layout.
Typical Applications
- Industrial control panels.
- Switchgear assemblies.
- OEM machinery.
- Automation systems.
- Mechanical mounting of electrical devices.
- Wöhner 60Classic busbar installations.
