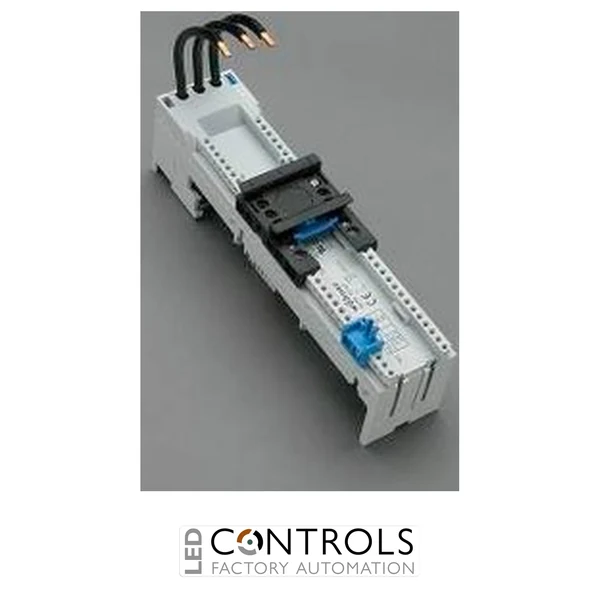

Wöhner 32427 EQUES 60Classic 32 A busbar adapter with AWG 10 leads for Schneider Electric LUB12 and LUB32 direct starters.
£34.68
The Wöhner 32427 is a compact 32 A three-pole busbar adapter designed for the direct mounting of Schneider Electric LUB12 and LUB32 direct starters onto the Wöhner EQUES 60Classic busbar system. It provides a secure electrical connection while significantly reducing panel wiring and installation time.
The adapter features CrossLink® Technology, factory-fitted AWG 10 (6 mm²) leads with ultrasonically sealed conductor ends, and a secure click-on mounting mechanism. Its removable upper section enables rapid installation, testing and maintenance while the touch-safe base remains connected to the busbar system.
With an IEC rated current of 32 A, a 690 V AC rated voltage and compatibility with 12, 15, 20, 25 and 30 mm busbars in both 5 mm and 10 mm thicknesses, the Wöhner 32427 is ideal for compact industrial motor control and automation systems.
The Wöhner 32427 is engineered specifically for Schneider Electric LUB12 and LUB32 direct starter assemblies, enabling them to be mounted directly onto the 60Classic busbar system. This reduces conventional wiring while creating a compact, organised and serviceable motor control installation.
CrossLink® Technology, ultrasonically sealed conductor ends and the integrated click mechanism provide reliable electrical performance while helping panel builders reduce installation time and simplify future maintenance.
| Current | 32 A |
|---|---|
| Manufacturer | Wöhner |
| Series | EQUES 60Classic |
| Model | 32427 |
| Full part number | 32427 000 |
| Type number | EEC6025-L |
| Product type | Busbar adapter for direct starters |
| Compatible devices | Schneider Electric LUB12 and LUB32 |
| Number of poles | 3 |
| Rated current (IEC) | 32 A |
| Rated voltage (IEC) | 690 V AC |
| Rated insulation voltage | 800 V AC |
| Rated impulse withstand voltage | 6 kV |
| Rated voltage (UL) | 600 V AC |
| Rated frequency (UL) | 50 / 60 Hz |
| Lead size | AWG 10 (6 mm²) |
| Dimensions (W × H × D) | 45 × 200 × 63 mm |
| Suitable busbar widths | 12, 15, 20, 25 and 30 mm |
| Suitable busbar thickness | 5 mm and 10 mm |
| Compatible busbars | Flat and section busbars |
| Standards | IEC 61439-1:2020, UL 508 |
| Approvals | CSA, UL and DNV GL |
| Halogen free | Yes |
| EAN | 4021267324278 |
The Wöhner 32427 is designed to mount Schneider Electric LUB12 and LUB32 direct starters directly onto Wöhner 60Classic busbar systems.
The adapter has an IEC rated current of 32 A.
The adapter is specifically designed for Schneider Electric LUB12 and LUB32 direct starter assemblies.
It supports flat and section busbars measuring 12, 15, 20, 25 or 30 mm wide with thicknesses of 5 mm or 10 mm.
The Wöhner 32427 incorporates CrossLink® Technology, ultrasonically sealed conductor ends and a click-on mounting mechanism for rapid installation.
Wöhner EQUES 60Classic busbar adapters provide a dependable, space-saving solution for integrating Schneider Electric direct starters into industrial motor control and power distribution systems.
