Why Choose the Wöhner 32432 EQUES 60Classic Busbar Adapter?

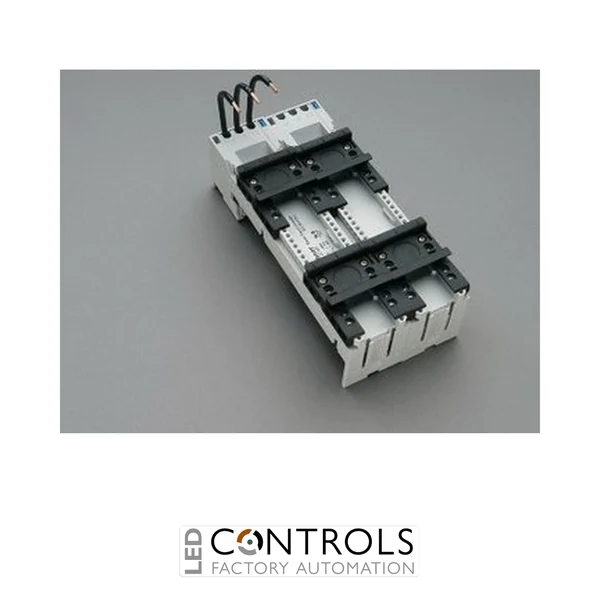

The Wöhner 32432 is a robust 25 A, 3-pole busbar adapter designed for securely mounting motor protection switches, miniature circuit breakers, contactors and other switching devices directly onto compatible 60 mm busbar systems. As part of the trusted Wöhner EQUES 60Classic series, it offers a compact and efficient solution for industrial control panels, switchgear assemblies and OEM machinery.
The adapter incorporates two adjustable mounting rails across a 90 mm wide platform, providing increased installation flexibility for larger or multiple devices. Factory-fitted AWG 12 (4 mm²) connection leads simplify wiring, while ultrasonically sealed conductor ends and a click-fit mounting mechanism help ensure reliable installation and long service life.
Rated at 25 A with an operational voltage of up to 690 V AC, the Wöhner 32432 is suitable for demanding industrial power distribution applications where dependable mechanical mounting and electrical performance are essential.
Key Advantages
- Compact 25 A busbar adapter for industrial control systems.
- 90 mm wide mounting platform accommodates larger switching devices.
- Two adjustable mounting rails provide flexible equipment positioning.
- Supplied with factory-fitted AWG 12 (4 mm²) leads.
- Click-on installation enables fast mounting onto 60 mm busbars.
- Suitable for switchgear, motor control centres and OEM machinery.
Key Features
- Wöhner EQUES 60Classic series.
- 25 A rated current.
- 3-pole configuration.
- 690 V AC IEC rated operational voltage.
- 90 mm wide adapter with two adjustable mounting rails.
- Factory-fitted AWG 12 (4 mm²) connection leads.
- Compatible with flat and section busbars.
- Halogen-free construction.
Reliable Busbar Mounting for Industrial Applications
The Wöhner 32432 enables electrical devices to be mounted directly onto compatible busbar systems, helping reduce conventional wiring while improving panel organisation and simplifying installation. Its wider 90 mm design provides additional mounting space for larger control devices and motor protection equipment.
Designed for professional switchgear manufacturers and machine builders, the EQUES 60Classic range delivers dependable mechanical support, reliable electrical connections and efficient panel construction for modern industrial automation systems.
Typical Applications
- Industrial control panels.
- Motor control centres.
- Power distribution systems.
- Machine building and OEM equipment.
- Switchgear assemblies.
- Electrical distribution cabinets.
