Why Choose the Wöhner 32441 EQUES 60Classic Busbar Adapter?

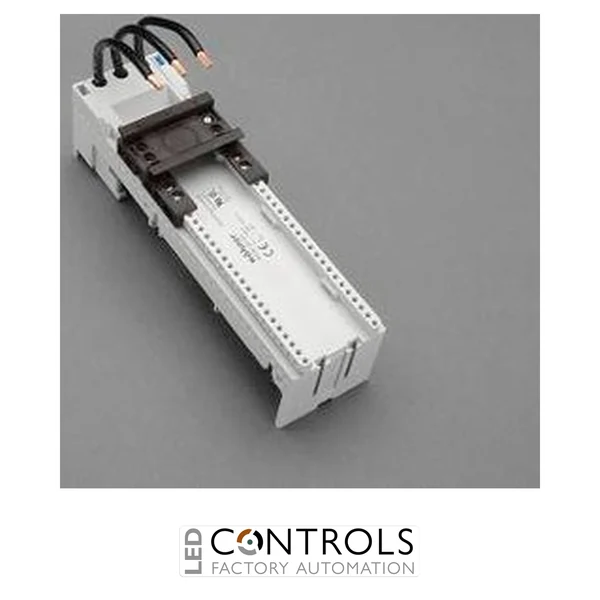

The Wöhner 32441 is a compact 32 A, 3-pole busbar adapter designed for mounting switching, protection and motor-control equipment directly onto compatible 60 mm busbar systems. Part of the established Wöhner EQUES 60Classic range, it provides a secure mechanical and electrical interface for industrial control panels, motor control centres, switchgear assemblies and OEM machinery.
The adapter has one adjustable mounting rail and a 54 × 200 mm mounting platform, allowing compatible devices to be positioned efficiently within the panel. Factory-fitted AWG 10 (6 mm²) connection leads simplify wiring, while ultrasonically sealed conductor ends support reliable electrical performance.
Rated at 32 A under IEC and 30 A under UL, the Wöhner 32441 supports operating voltages up to 690 V AC under IEC and 600 V AC under UL. Its integrated click mechanism enables fast, tool-free attachment to compatible flat and section busbars.
Key Advantages
- Compact 32 A IEC-rated busbar adapter for industrial applications.
- One adjustable mounting rail supports flexible equipment positioning.
- Factory-fitted AWG 10 (6 mm²) connection leads.
- Ultrasonically sealed conductor ends promote dependable connections.
- Click-fit mechanism enables fast installation onto the busbar system.
- Compatible with several flat busbar sizes and section busbars.
- Suitable for feeder circuits above 250 V under the specified UL conditions.
Key Features
- Wöhner EQUES 60Classic series.
- 32 A IEC rated current.
- 30 A UL rated current.
- 3-pole configuration.
- One adjustable mounting rail.
- 54 mm wide and 200 mm high mounting platform.
- Integrated AWG 10 (6 mm²) leads.
- Compatible with 5 mm and 10 mm thick busbars.
- Halogen-free construction.
Efficient Installation on 60Classic Busbar Systems
The Wöhner 32441 is designed for the compact assembly of complete motor circuits using commercially available switching equipment. Mounting devices directly onto the busbar system can reduce conventional wiring, improve cabinet organisation and provide a secure electrical connection to the power-distribution system.
Its adjustable mounting rail allows the installed device position to be adapted to the application. A clearance of at least 12 mm above the adapter must be maintained so the unit can be removed from the busbar system when required.
Typical Applications
- Industrial motor-control panels.
- Motor protection and starter circuits.
- Industrial switchgear assemblies.
- Machinery and production-line control cabinets.
- Power-distribution panels.
- OEM electrical equipment.
- Busbar-based panel modernisation projects.
