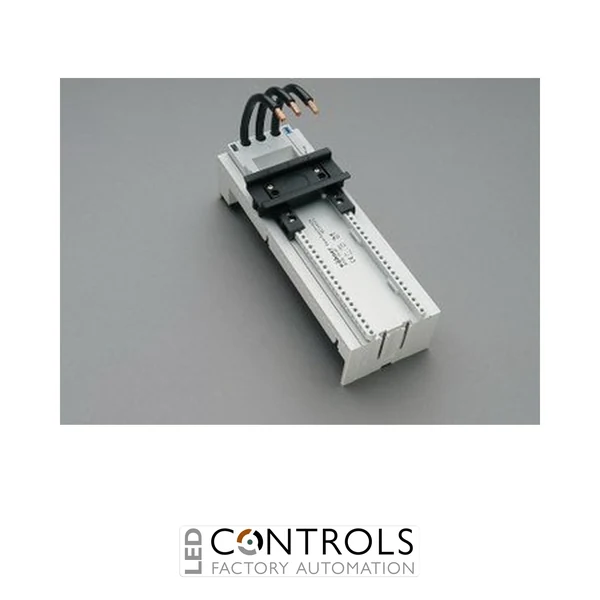

Why Choose the Wöhner 32444 EQUES 60Classic Busbar Adapter?
The Wöhner 32444 is a high-quality 32 A, 3-pole busbar adapter from the proven EQUES 60Classic range. Designed for mounting switching, protection and motor-control devices directly onto compatible 60 mm busbar systems, it provides a reliable, compact and space-saving solution for industrial control panels, switchgear assemblies and OEM machinery. The adapter features one adjustable mounting rail, a 72 × 200 mm mounting platform and factory-fitted AWG 10 (6 mm²) connection leads.
Its integrated click mechanism enables rapid installation onto compatible flat and section busbars, while ultrasonically sealed conductor ends provide dependable electrical performance and long-term reliability. Designed for professional panel builders, the adapter helps reduce conventional wiring and simplifies assembly of modern power distribution systems.
With a rated current of 32 A, compatibility with busbars from 12 to 30 mm wide, and compliance with IEC 61439-1 and UL 508, the Wöhner 32444 is suitable for demanding industrial installations where efficient busbar mounting and reliable electrical connections are essential.
Key Advantages
- 32 A busbar adapter for industrial control and power distribution applications.
- One adjustable mounting rail for flexible equipment positioning.
- Factory-fitted AWG 10 (6 mm²) connection leads.
- Ultrasonically sealed conductor ends for dependable electrical performance.
- Click-fit installation onto compatible 60 mm busbar systems.
- Compatible with flat and section busbars.
- Compact 72 mm wide design for efficient panel layouts.
Key Features
- Wöhner EQUES 60Classic series.
- 32 A rated current.
- 3-pole configuration.
- One adjustable mounting rail.
- 72 × 200 mm mounting platform.
- Factory-fitted AWG 10 (6 mm²) connection leads.
- Compatible with 12, 15, 20, 25 and 30 mm flat busbars plus section busbars.
- Halogen-free construction.
Reliable Installation for Industrial Busbar Systems
The Wöhner 32444 enables direct installation of switching and protection devices onto compatible 60 mm busbar systems, reducing panel wiring while improving accessibility and cabinet organisation. Its integrated click mechanism allows fast installation and secure positioning on the busbar system.
The combination of a 72 mm mounting width, adjustable mounting rail and integrated AWG 10 connection leads makes the adapter well suited to professional switchgear manufacturing, industrial automation systems and OEM equipment.
Typical Applications
- Industrial control panels.
- Motor control centres.
- Power distribution systems.
- Industrial switchgear assemblies.
- OEM machinery.
- Electrical distribution cabinets.
