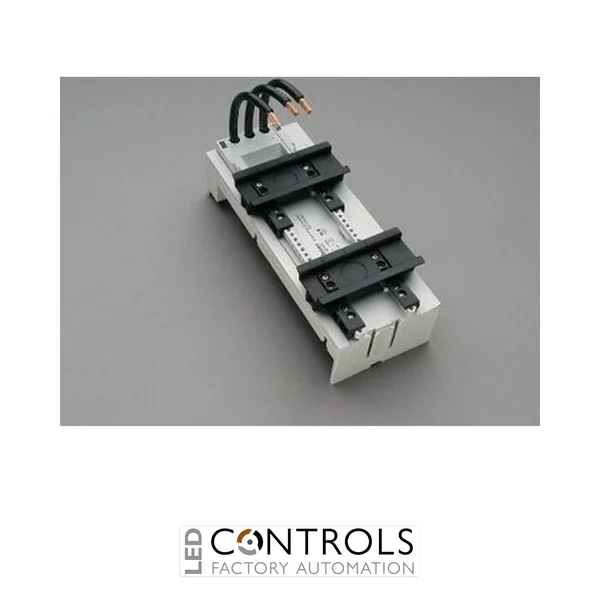

Wöhner 32446 EQUES 60Classic 32 A busbar adapter with two adjustable mounting rails and AWG 10 (6 mm²) connection leads for 60 mm busbar systems.
£47.41
The Wöhner 32446 is a versatile 32 A, 3-pole busbar adapter from the proven EQUES 60Classic range. Designed for mounting industrial switching and protection equipment directly onto compatible 60 mm busbar systems, it features two adjustable mounting rails on an 81 × 200 mm mounting platform, providing exceptional flexibility for panel builders and OEM machine manufacturers.
Factory-fitted AWG 10 (6 mm²) connection leads with ultrasonically sealed conductor ends simplify installation while ensuring reliable electrical performance. The integrated click mechanism enables fast, tool-free mounting onto compatible flat and section busbars, helping reduce installation time and panel wiring.
Rated at 32 A with an IEC operating voltage of up to 690 V AC, the Wöhner 32446 is ideal for industrial switchgear, motor control centres and power distribution systems where dependable busbar mounting and efficient space utilisation are essential.
The Wöhner 32446 enables switching devices, protection equipment and control components to be mounted directly onto compatible 60 mm busbar systems. This minimises conventional wiring, improves cabinet organisation and accelerates assembly for industrial control panels.
Its dual adjustable mounting rails provide greater installation flexibility for larger or differently configured devices, making the adapter suitable for demanding switchgear and machine-building applications.
| Current | 30 A |
|---|---|
| Manufacturer | Wöhner |
| Series | EQUES 60Classic |
| Model | 32446 |
| Manufacturer part number | 32446 000 |
| Type number | EEC6032-L |
| Product type | Busbar adapter |
| Rated current (IEC) | 32 A |
| Rated voltage (IEC) | 690 V AC |
| Rated insulation voltage | 800 V AC |
| Rated impulse withstand voltage | 6 kV |
| Number of poles | 3 |
| Busbar spacing | 60 mm |
| Mounting rails | 2 adjustable |
| Connection leads | AWG 10 (6 mm²) |
| Dimensions (W × H) | 81 × 200 mm |
| Compatible busbars | 12, 15, 20, 25 and 30 × 5 / 10 mm plus section busbars |
| Material | Halogen-free |
| Standards | IEC 61439-1:2020, UL 508 |
| Approvals | CSA, UL and DNV GL |
| Product group | 05-21 |
| Pack size | 4 |
| ETIM | EC001531 |
| EAN | 4021267324469 |
It is used to mount switching and protection equipment directly onto compatible 60 mm busbar systems.
The Wöhner 32446 has a rated current of 32 A.
The adapter incorporates two adjustable mounting rails for flexible equipment positioning.
The adapter is supplied with factory-fitted AWG 10 (6 mm²) connection leads.
The adapter is compatible with 60 mm busbar systems using 12, 15, 20, 25 and 30 mm wide busbars with 5 mm or 10 mm thicknesses, including section busbars.
The Wöhner 32446 EQUES 60Classic busbar adapter provides a dependable, space-efficient solution for mounting industrial switching and protection devices directly onto modern 60 mm busbar systems.
