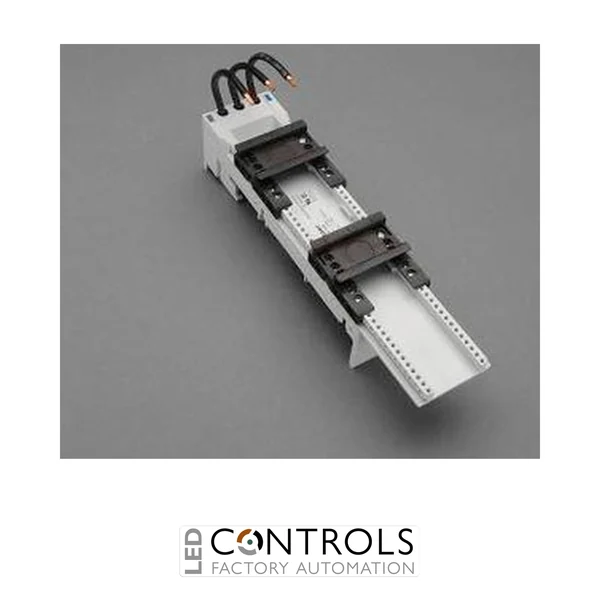

Wöhner 32449 EQUES 60Classic 32 A, 3-pole busbar adapter with two adjustable mounting rails, a 54 x 260 mm mounting platform and AWG 10 connection leads.
£31.18
The Wöhner 32449 is a professional 32 A, 3-pole busbar adapter from the established EQUES 60Classic range. Designed for mounting switching, protection and motor-control equipment directly onto compatible 60 mm busbar systems, it provides a reliable and space-efficient solution for industrial control panels, motor control centres, switchgear assemblies and OEM machinery.
This adapter features two adjustable mounting rails and a generous 54 × 260 mm mounting platform, offering increased installation height for compatible industrial devices. Factory-fitted AWG 10 (6 mm²) connection leads simplify electrical installation, while ultrasonically sealed conductor ends support dependable long-term performance.
The integrated click mechanism allows the Wöhner 32449 to be pushed securely onto compatible flat or section busbars. Its extended 260 mm design and adjustable mounting rails make it particularly suitable for larger device combinations and motor-controller assemblies requiring additional mounting space.
The Wöhner 32449 enables switching and motor-control equipment to be mounted directly onto the power-distribution busbars. This approach can reduce conventional wiring, shorten assembly times and create a cleaner, more accessible control-panel layout.
Its two adjustable mounting rails allow compatible devices to be positioned according to the equipment configuration. The extended 260 mm mounting platform provides additional space for larger components or multi-device assemblies that cannot be accommodated on shorter busbar adapters.
A clearance of at least 12 mm above the adapter must be maintained so the product can be released and removed from the busbar system when servicing or modifying the installation.
| Current | 30 A |
|---|---|
| Phase | Three Phase |
| Manufacturer | Wöhner |
| Series | EQUES 60Classic |
| Model | 32449 |
| Manufacturer part number | 32449 000 |
| Product type | Busbar adapter |
| Rated current | 32 A |
| Number of poles | 3 |
| Busbar system | 60Classic |
| Busbar spacing | 60 mm |
| Mounting rails | 2 adjustable mounting rails |
| Connection type | Factory-fitted leads |
| Lead size | AWG 10 (6 mm²) |
| Wire stripping length | 9 mm |
| Dimensions (W × H × D) | 54 × 260 × 63 mm |
| Approximate weight | 0.433 kg |
| Compatible busbar widths | 12, 15, 20, 25 and 30 mm |
| Compatible busbar thicknesses | 5 and 10 mm |
| Section busbar compatibility | Yes |
| Motor-controller rating | Type E, 32 A at 480 V AC |
| Material property | Halogen-free |
| Required removal clearance | Minimum 12 mm above the adapter |
| Product group | 05 |
| Subgroup | 21 |
| Pack size | 4 |
| ECLASS | 27370304 |
| ETIM | EC001531 |
| EAN | 4021267324490 |
The Wöhner 32449 is used to mount and electrically connect compatible switching, protection and motor-control devices directly onto a Wöhner 60Classic busbar system.
The Wöhner 32449 has a rated current of 32 A.
The adapter has two adjustable mounting rails, allowing compatible equipment to be positioned according to the installation requirements.
The adapter is supplied with factory-fitted AWG 10 (6 mm²) connection leads featuring ultrasonically sealed conductor ends.
The adapter measures approximately 54 mm wide, 260 mm high and 63 mm deep.
It is suitable for 12, 15, 20, 25 and 30 mm wide busbars with thicknesses of 5 or 10 mm, as well as compatible section busbars.
A minimum clearance of 12 mm above the adapter is required so it can be removed safely from the busbar system.
The Wöhner 32449 EQUES 60Classic busbar adapter combines an extended mounting platform, two adjustable mounting rails and factory-fitted 6 mm² leads to support efficient, reliable industrial panel construction.
