Why Choose the Wöhner 32452 EQUES 60Classic Busbar Adapter?

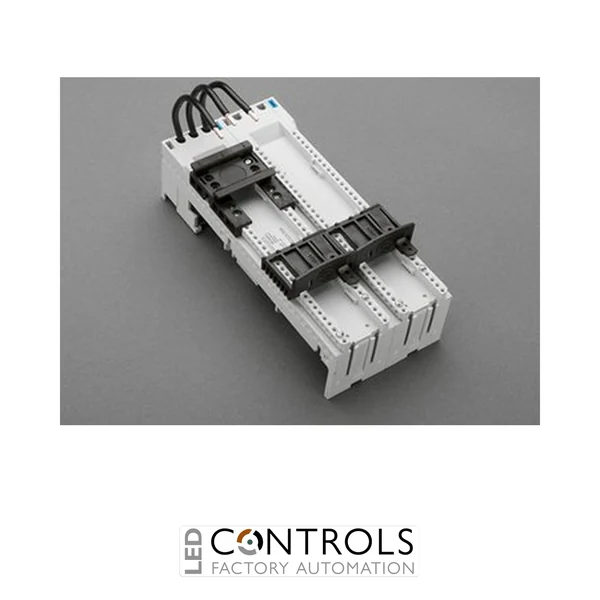

The Wöhner 32452 is a professional 25 A, 3-pole busbar adapter from the proven EQUES 60Classic range. It is specifically designed for mounting Eaton PKZM01 and PKE12 reversing starters directly onto compatible 60 mm busbar systems, providing a compact, reliable and space-saving solution for industrial control panels, motor control centres and OEM machinery.
The adapter features one adjustable mounting rail on a 90 × 200 mm mounting platform and is supplied with factory-fitted AWG 12 (4 mm²) connection leads. Ultrasonically sealed conductor ends provide dependable electrical performance, while the integrated click-fit mechanism enables rapid installation onto compatible flat and section busbars.
Rated at 25 A, the Wöhner 32452 reduces conventional panel wiring, improves cabinet organisation and simplifies the installation of Eaton reversing starter combinations within modern industrial power distribution systems.
Key Advantages
- 25 A busbar adapter designed for Eaton PKZM01 and PKE12 reversing starters.
- One adjustable mounting rail for flexible equipment positioning.
- Factory-fitted AWG 12 (4 mm²) connection leads.
- Quick click-fit installation onto compatible 60 mm busbar systems.
- Ultrasonically sealed conductor ends for dependable electrical connections.
- Compatible with flat and section busbars.
- Reduces wiring time and simplifies panel assembly.
Key Features
- Wöhner EQUES 60Classic series.
- 25 A rated current.
- 3-pole configuration.
- One adjustable mounting rail.
- 90 × 200 mm mounting platform.
- Factory-fitted AWG 12 (4 mm²) leads.
- Designed for Eaton PKZM01 and PKE12 reversing starters.
- Compatible with 60 mm busbar systems.
- Halogen-free construction.
Designed for Eaton Reversing Starter Applications
The Wöhner 32452 enables Eaton PKZM01 and PKE12 reversing starters to be mounted directly onto compatible 60 mm busbar systems. This reduces conventional wiring, improves cabinet organisation and speeds installation while maintaining reliable electrical performance.
Its adjustable mounting rail, compact footprint and integrated AWG 12 connection leads make the adapter an excellent choice for switchgear manufacturers, machine builders and panel builders requiring efficient motor starter integration.
Typical Applications
- Industrial control panels.
- Motor control centres.
- Eaton PKZM01 reversing starter installations.
- Eaton PKE12 reversing starter applications.
- Industrial switchgear assemblies.
- OEM machinery.
- Power distribution cabinets.
