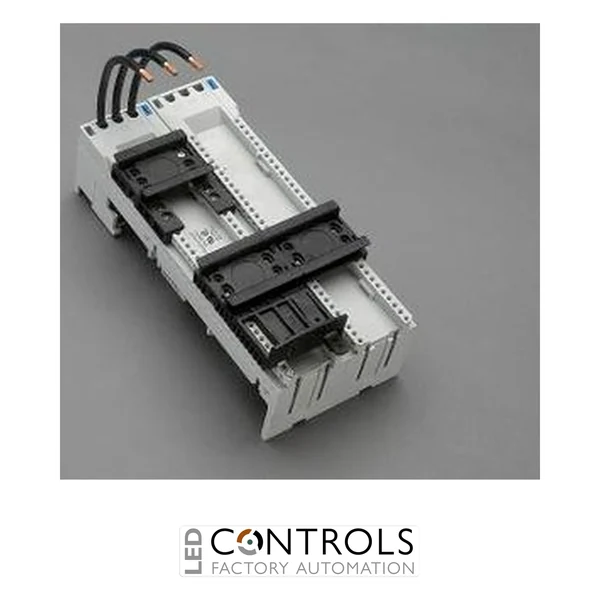

Wöhner 32453 EQUES 60Classic 32 A busbar adapter for Eaton PKZM0 and PKE32 reversing starters, featuring two adjustable mounting rails, a 90 x 200 mm platform and AWG 10 connection leads.
£60.03
The Wöhner 32453 is a 32 A, 3-pole busbar adapter from the EQUES 60Classic range. It is designed for mounting Eaton PKZM0 and PKE32 reversing starter combinations directly onto compatible 60 mm busbar systems.
Featuring a 90 × 200 mm mounting platform and two adjustable mounting rails, the adapter provides the space and flexibility required for a reversing starter assembly. Factory-fitted AWG 10 (6 mm²) connection leads help simplify installation and reduce conventional panel wiring.
The conductor ends are ultrasonically sealed to support reliable electrical connections. An integrated click mechanism allows the adapter to be pushed securely onto compatible flat or section busbars, making the Wöhner 32453 a practical choice for industrial control panels, motor control centres and machine-building applications.
The Wöhner 32453 allows compatible Eaton PKZM0 and PKE32 reversing starter components to be installed directly on a 60Classic busbar system. Its wider mounting platform accommodates the additional switching equipment required to control motor operation in both forward and reverse directions.
Direct busbar mounting can reduce the amount of conventional point-to-point wiring required inside the enclosure. This helps panel builders create cleaner layouts, shorten assembly times and improve access to installed motor-control equipment.
| Current | 25 A |
|---|---|
| Manufacturer | Wöhner |
| Series | EQUES 60Classic |
| Model | 32453 |
| Manufacturer part number | 32453 000 |
| Product type | Busbar adapter |
| Rated current | 32 A |
| Number of poles | 3 |
| Busbar system | 60Classic |
| Busbar spacing | 60 mm |
| Starter configuration | Reversing starter |
| Compatible devices | Eaton PKZM0 and Eaton PKE32 |
| Mounting rails | 2 adjustable mounting rails |
| Connection type | Factory-fitted leads |
| Lead size | AWG 10 (6 mm²) |
| Dimensions (W × H) | 90 × 200 mm |
| Compatible busbar widths | 12, 15, 20, 25 and 30 mm |
| Compatible busbar thicknesses | 5 and 10 mm |
| Section busbar compatibility | Yes |
| Product group | 05 |
| Subgroup | 21 |
| Pack size | 2 |
| Approximate unit weight | 0.612 kg |
| ECLASS | 27370304 |
| ETIM | EC001531 |
| EAN | 4021267324537 |
The Wöhner 32453 is used to mount and connect Eaton PKZM0 and PKE32 reversing starter combinations directly onto compatible Wöhner 60Classic busbar systems.
The adapter has a rated current of 32 A.
The Wöhner 32453 is designed for reversing starter combinations based on the Eaton PKZM0 and PKE32 product ranges.
The adapter has two adjustable mounting rails for positioning the components used in a reversing starter assembly.
It is supplied with factory-fitted AWG 10 leads with a 6 mm² conductor cross-section.
The mounting platform measures 90 mm wide × 200 mm high.
It is compatible with 12, 15, 20, 25 and 30 mm wide busbars in 5 or 10 mm thicknesses, as well as suitable section busbars.
The Wöhner 32453 combines a 32 A rating, two adjustable mounting rails and factory-fitted 6 mm² leads to simplify the integration of Eaton reversing starters into 60Classic busbar systems.
