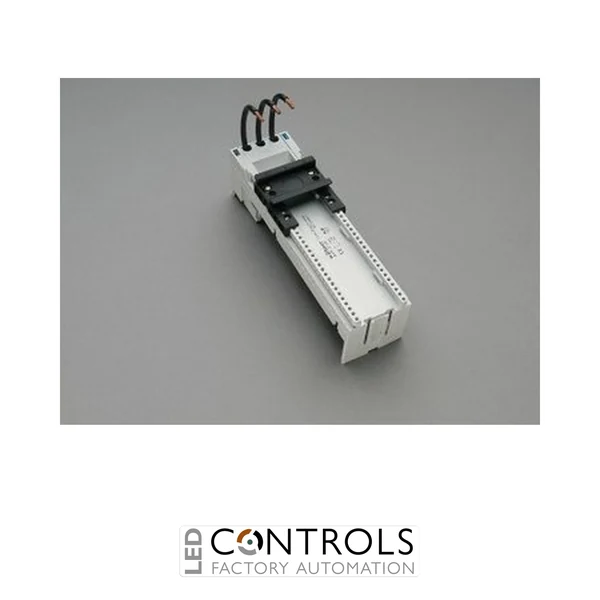

Wöhner 32454 EQUES 60Classic 63 A busbar adapter with one adjustable mounting rail, 54 × 200 mm mounting platform and AWG 8 (10 mm²) connection leads.
£28.45
The Wöhner 32454 is a 63 A, 3-pole busbar adapter from the proven EQUES 60Classic range. Designed for mounting switching, protection and motor-control devices directly onto compatible 60 mm busbar systems, it provides a robust and space-saving solution for industrial control panels, motor control centres and OEM machinery.
The adapter features one adjustable mounting rail on a 54 × 200 mm mounting platform and is supplied with factory-fitted AWG 8 (10 mm²) connection leads. Ultrasonically sealed conductor ends enhance connection reliability, while the integrated click-fit mechanism enables quick installation onto compatible flat and section busbars.
With a 63 A current rating, the Wöhner 32454 is ideal for higher-current industrial applications where dependable busbar mounting, simplified wiring and efficient panel assembly are required.
The Wöhner 32454 mounts directly onto compatible 60 mm busbar systems using Wöhner's proven click mechanism, allowing rapid installation while reducing conventional wiring inside industrial control panels. Factory-fitted 10 mm² connection leads help simplify assembly and maintain consistent installation quality.
Its adjustable mounting rail allows compatible devices to be positioned as required, providing flexibility for panel builders and machine manufacturers working with higher-current applications.
| Current | 65 A |
|---|---|
| Manufacturer | Wöhner |
| Series | EQUES 60Classic |
| Model | 32454 |
| Manufacturer part number | 32454 000 |
| Product type | Busbar adapter |
| Rated current (IEC) | 63 A |
| Rated voltage (IEC) | 690 V AC |
| Rated insulation voltage | 800 V AC |
| Rated impulse withstand voltage | 6 kV |
| Number of poles | 3 |
| Busbar spacing | 60 mm |
| Mounting rails | 1 adjustable mounting rail |
| Connection leads | AWG 8 (10 mm²) |
| Dimensions (W × H) | 54 × 200 mm |
| Compatible busbars | 12, 15, 20, 25 and 30 × 5 / 10 mm plus section busbars |
| Material | Halogen-free plastic |
| Standards | IEC 61439-1:2020, UL 508 |
| Approvals | CSA, UL and DNV GL |
| Product group | 05 |
| Subgroup | 21 |
| Pack size | 4 |
| EAN | 4021267324544 |
It is a 63 A busbar adapter for mounting compatible switching and motor-control devices directly onto Wöhner 60Classic busbar systems.
The Wöhner 32454 has a rated current of 63 A.
The adapter incorporates one adjustable mounting rail.
The adapter is supplied with factory-fitted AWG 8 (10 mm²) connection leads.
It is designed for Wöhner 60Classic systems using 12, 15, 20, 25 and 30 mm busbars with 5 or 10 mm thicknesses, as well as compatible section busbars.
The Wöhner 32454 combines a 63 A current rating, adjustable mounting rail and factory-fitted 10 mm² connection leads to provide a dependable solution for higher-current installations on 60Classic busbar systems.
