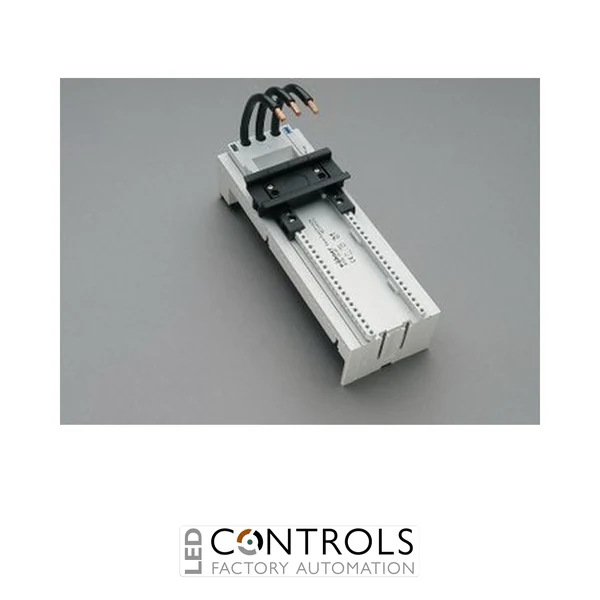

Wöhner 32457 EQUES 60Classic three-pole 63 A busbar adapter with one adjustable 72 mm mounting rail and pre-fitted AWG 8 connection leads for industrial motor starter and power distribution applications.
£42.75
The Wöhner 32457 is a versatile 63 A busbar adapter designed for mounting motor starter combinations and other electrical equipment directly onto industrial busbar systems. As part of the established Wöhner EQUES® 60Classic range, it provides panel builders, switchgear manufacturers and automation engineers with a secure and space-efficient connection between electrical devices and the power distribution system.
This three-pole adapter features a 72 mm-wide adjustable mounting rail and pre-fitted AWG 8 connection leads, helping reduce installation time and minimise conventional panel wiring. Its click-on attachment mechanism enables straightforward mounting, while the adjustable rail supports the installation of motor protection devices, contactors and complete motor starter assemblies from various manufacturers.
With a rated current of 63 A and a rated operating voltage of 690 V AC, the Wöhner 32457 is suitable for demanding industrial power distribution applications. Its compatibility with multiple busbar dimensions makes it a practical choice for control cabinets, motor control centres, machine-building projects and low-voltage switchgear assemblies.
The Wöhner 32457 enables motor protection switches, contactors and related control components to be assembled as complete motor starter combinations directly on the busbar system. This approach reduces conventional point-to-point wiring, saves valuable cabinet space and helps create an organised electrical installation.
Its adjustable mounting rail accommodates equipment from different manufacturers, while the pre-installed conductors simplify connection to the mounted devices. A minimum clearance of approximately 12 mm should be maintained above the adapter so that it can be removed safely from the busbar system when servicing is required.
| Current | 65 A |
|---|---|
| Manufacturer | Wöhner |
| Series | EQUES® 60Classic |
| Model | 32457 |
| Full part number | 32457 000 |
| Product type | Busbar adapter with connection leads |
| Number of poles | 3 |
| Rated current | 63 A |
| Rated operating voltage | 690 V AC |
| Rated insulation voltage (Ui) | 800 V AC |
| Rated impulse withstand voltage (Uimp) | 6 kV |
| Dimensions (W × H × D) | 72 × 200 × 63 mm |
| Mounting arrangement | 1 adjustable mounting rail |
| Connection leads | AWG 8 (10 mm²) |
| Busbar centre distance | 60 mm |
| Compatible busbars | 12, 15, 20, 25 and 30 × 5 or 10 mm |
| Section busbar compatibility | Yes |
| Material property | Halogen-free |
| Applicable standard | IEC 61439-1:2020 |
| EAN | 4021267324575 |
The Wöhner 32457 is used to mount motor starter combinations and other electrical devices directly onto compatible 60 mm industrial busbar systems.
The busbar adapter has an IEC rated current of 63 A.
It is suitable for 12, 15, 20, 25 and 30 mm-wide busbars with a thickness of 5 or 10 mm, as well as compatible section busbars.
Yes. It is supplied with pre-fitted AWG 8 conductors rated at 10 mm², helping simplify connection to mounted electrical equipment.
A clearance of at least 12 mm above the adapter should be provided so it can be removed from the busbar system when required.
Wöhner EQUES® 60Classic busbar adapters provide a reliable and efficient platform for assembling motor circuits, reducing panel wiring and connecting industrial switchgear securely to modern power distribution systems.
