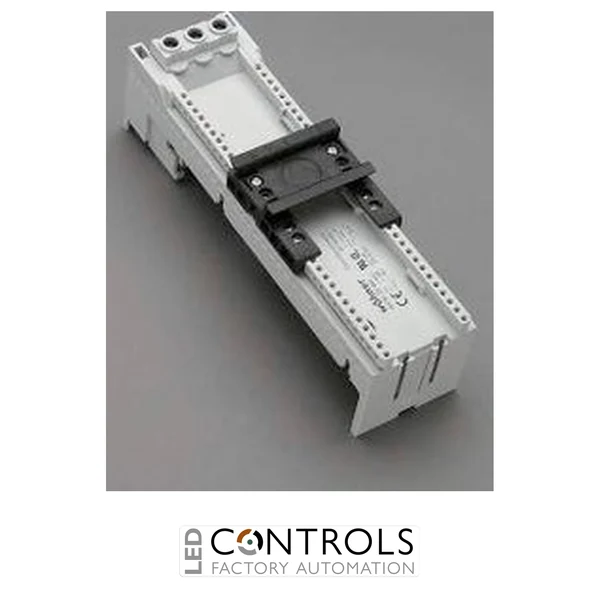

Wöhner 32464 EQUES 60Classic 80 A three-pole busbar adapter with one adjustable mounting rail and front-operated screw terminals for industrial power distribution.
£39.74
The Wöhner 32464 is a high-performance 80 A busbar adapter designed for mounting electrical devices directly onto industrial busbar systems. As part of the proven Wöhner EQUES® 60Classic range, it provides a reliable, compact and efficient solution for panel builders, switchgear manufacturers and OEM machine builders requiring flexible power distribution within low-voltage assemblies.
The adapter features one adjustable mounting rail and integrated front-operated screw terminals accepting conductors from 1.5 mm² to 16 mm². Unlike leaded versions, the terminal connection design allows installers to terminate cables directly, providing greater flexibility for bespoke panel layouts while reducing installation complexity.
Rated at 80 A and suitable for operation on systems up to 690 V AC, the Wöhner 32464 is compatible with a wide range of flat and section busbars. Its integrated click mechanism enables rapid installation while allowing free phase selection during assembly, making it an excellent choice for industrial control panels, motor control centres and power distribution equipment.
The Wöhner 32464 enables electrical equipment to be mounted directly onto industrial busbar systems while providing secure screw terminal connections for incoming conductors. This configuration reduces wiring complexity, improves panel organisation and allows greater flexibility when designing customised control panels.
Its robust construction, adjustable mounting rail and quick click-fit installation system make it well suited to industrial switchgear, OEM machinery and low-voltage power distribution systems where dependable performance and straightforward maintenance are essential.
| Current | 80 A |
|---|---|
| Manufacturer | Wöhner |
| Series | EQUES® 60Classic |
| Model | 32464 |
| Full part number | 32464 000 |
| Product type | Busbar adapter |
| Number of poles | 3 |
| Rated current | 80 A |
| Rated operating voltage | 690 V AC |
| Rated insulation voltage (Ui) | 800 V AC |
| Rated impulse withstand voltage (Uimp) | 6 kV |
| Dimensions (W × H × D) | 54 × 200 × 63 mm |
| Mounting | 1 adjustable mounting rail |
| Terminal type | Front-operated cage clamp terminals |
| Conductor size | 1.5 to 16 mm² |
| Compatible busbars | 12, 15, 20, 25 and 30 × 5 or 10 mm plus section busbars |
| Standards | IEC 61439-1:2020 |
| EAN | 4021267324643 |
The Wöhner 32464 is an 80 A busbar adapter used for mounting electrical equipment directly onto compatible industrial busbar systems.
No. The Wöhner 32464 uses front-operated screw terminals that accept conductors from 1.5 mm² to 16 mm², allowing direct cable termination.
The adapter has a rated operating current of 80 A.
It is suitable for 12, 15, 20, 25 and 30 mm busbars with 5 or 10 mm thickness, together with compatible section busbars.
The Wöhner 32464 offers free phase selection, an integrated click-fit mounting mechanism and an adjustable mounting rail for fast and flexible installation.
Wöhner EQUES® 60Classic busbar adapters are trusted by industrial panel builders and switchgear manufacturers for delivering reliable, efficient and space-saving power distribution solutions across a wide range of industrial applications.
