Why Choose the Wöhner 32465 Busbar Adapter?

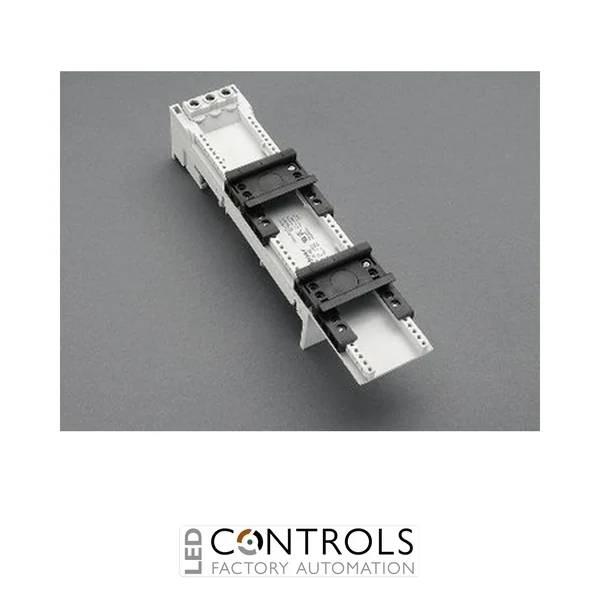

The Wöhner 32465 is a premium 80 A busbar adapter designed for mounting electrical devices directly onto industrial busbar systems. As part of the trusted Wöhner EQUES® 60Classic range, it provides a compact, reliable and highly efficient solution for switchgear manufacturers, panel builders and OEM machine builders requiring flexible power distribution within modern electrical installations.
Featuring two adjustable mounting rails, front-operated screw terminals and Wöhner's proven click-on installation mechanism, the adapter enables rapid assembly while reducing wiring complexity. The integrated terminal design accepts conductors from 1.5 mm² to 16 mm², allowing direct cable termination without the need for pre-fitted leads.
With a rated current of 80 A and a 690 V AC operating voltage, the Wöhner 32465 is suitable for industrial control panels, motor control centres, machine building and low-voltage power distribution systems. Free phase selection and compatibility with a wide range of busbar sizes provide maximum installation flexibility.
Key Advantages
- Designed for the Wöhner EQUES® 60Classic busbar system.
- 80 A current rating for industrial power distribution.
- Two adjustable mounting rails for flexible equipment positioning.
- Front-operated screw terminals accept conductors from 1.5 mm² to 16 mm².
- Free phase selection simplifies installation.
- Integrated click mechanism enables fast and secure mounting onto compatible busbars.
Key Features
- Wöhner EQUES® 60Classic series.
- Part number: 32465.
- 80 A IEC rated current.
- 690 V AC rated operating voltage.
- 800 V insulation voltage (Ui).
- 6 kV impulse withstand voltage (Uimp).
- Three-pole construction.
- Two adjustable mounting rails.
- Front-operated cage clamp screw terminals.
- Suitable for flat and section busbars.
Reliable Busbar Mounting for Industrial Applications
The Wöhner 32465 enables electrical devices to be mounted directly onto industrial busbar systems while providing secure front-access cable termination. This reduces conventional wiring, improves enclosure organisation and creates a cleaner, more efficient panel layout.
Its twin adjustable mounting rails provide additional flexibility for positioning motor protection devices, contactors and other DIN rail mounted equipment. Combined with free phase selection and Wöhner's proven click-fit installation system, the adapter delivers reliable long-term performance in demanding industrial environments.
Typical Applications
- Industrial switchboards.
- Power distribution systems.
- Motor control centres (MCCs).
- Machine control panels.
- OEM electrical equipment.
- Industrial automation installations.
