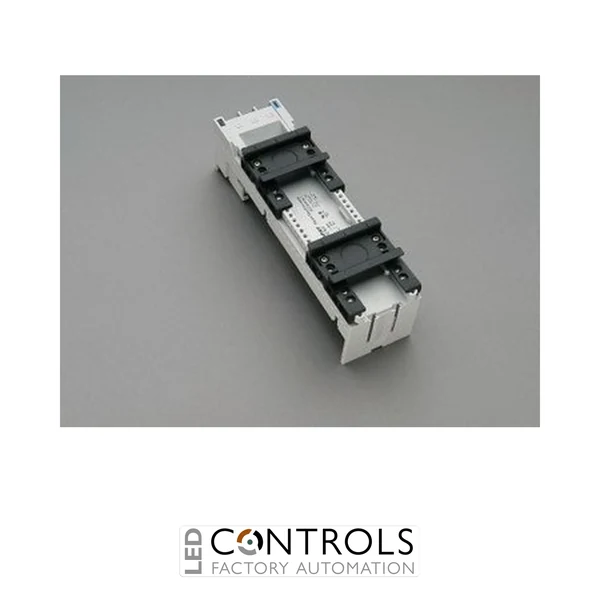

Why Choose the Wöhner 32467 Busbar Adapter?
The Wöhner 32467 is a heavy-duty 80 A busbar adapter designed for mounting electrical equipment directly onto industrial busbar systems. Part of the trusted Wöhner EQUES® 60Classic range, it offers an efficient and reliable solution for switchgear manufacturers, panel builders and OEM machine builders requiring secure power distribution within compact electrical assemblies.
The adapter incorporates two adjustable mounting rails together with rear-operated 16 mm² screw terminals, allowing direct cable termination without pre-installed leads. This arrangement provides greater installation flexibility while reducing wiring time and improving accessibility during assembly and maintenance.
Rated at 80 A for systems up to 690 V AC, the Wöhner 32467 is compatible with a wide range of flat and section busbars. Its integrated click-fit mechanism enables rapid installation, making it ideal for industrial switchboards, motor control centres and machine control panels.
Key Advantages
- Designed for the Wöhner EQUES® 60Classic busbar system.
- 80 A rated current for industrial power distribution.
- Two adjustable mounting rails for flexible equipment installation.
- Rear-operated screw terminals accept conductors up to 16 mm².
- Compatible with flat and section busbars.
- Integrated click-fit mounting system for rapid installation.
Key Features
- Wöhner EQUES® 60Classic series.
- Part number: 32467.
- 80 A IEC rated current.
- 690 V AC rated operating voltage.
- 800 V insulation voltage (Ui).
- 6 kV impulse withstand voltage (Uimp).
- Three-pole construction.
- Two adjustable mounting rails.
- Rear-operated screw terminals.
- Halogen-free construction.
Reliable Busbar Mounting for Industrial Applications
The Wöhner 32467 enables secure installation of electrical equipment directly onto industrial busbar systems while providing convenient rear-access cable termination. This design reduces conventional wiring, improves panel organisation and helps create cleaner, more efficient electrical assemblies.
Its robust construction, dual adjustable mounting rails and compatibility with numerous busbar profiles make it well suited to industrial switchgear, OEM machinery, power distribution systems and automation equipment requiring dependable long-term performance.
Typical Applications
- Industrial switchboards.
- Power distribution systems.
- Motor control centres (MCCs).
- Machine control panels.
- OEM electrical equipment.
- Industrial automation installations.
