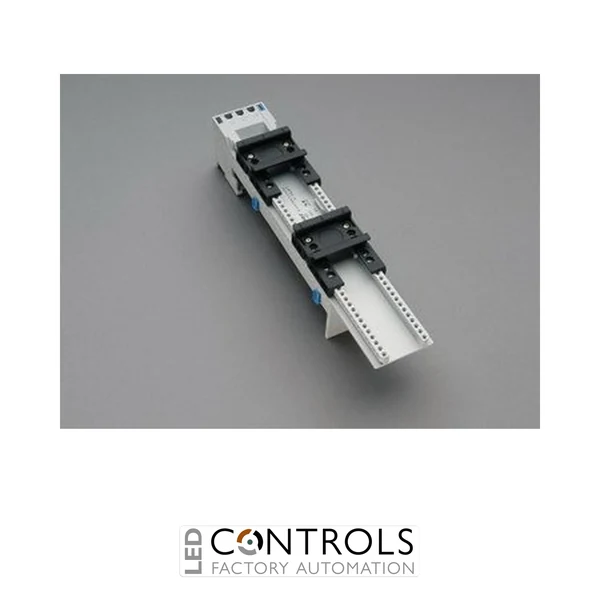

Wöhner 32484 EQUES 60Classic mechanical busbar component support with two adjustable mounting rails, a 45 × 260 × 63 mm format and no electrical connection.
£32.19
The Wöhner 32484 is a compact busbar component support designed to mount DIN rail equipment directly onto a Wöhner industrial busbar system without making an electrical connection. Part of the established Wöhner EQUES® 60Classic range, it provides a practical mechanical mounting platform for panel builders, switchgear manufacturers and OEM machine builders.
The component support features two adjustable mounting rails, enabling compatible control and auxiliary devices to be positioned to suit the panel layout. Its extended 260 mm height provides useful mounting space for larger device combinations while retaining a narrow width of only 45 mm.
Designed for the Wöhner 60Classic system, the 32484 can be installed on flat busbars measuring 12, 15, 20, 25 or 30 mm wide with a thickness of 5 or 10 mm. It is also suitable for compatible section busbars, making it a versatile choice for organised and space-efficient industrial control assemblies.
The Wöhner 32484 allows compatible DIN rail equipment to be positioned directly above the busbar system while remaining electrically isolated from it. This makes the support particularly useful for auxiliary components that require a secure mounting position but do not need a direct supply connection from the busbars.
Its two adjustable rails can support an organised arrangement of relays, terminals, interface modules, power supplies and other control equipment. By using the space above the busbar system efficiently, the component support can help reduce separate mounting structures and create a cleaner, more accessible panel layout.
| Manufacturer | Wöhner |
|---|---|
| Series | EQUES® 60Classic |
| Model | 32484 |
| Full part number | 32484 000 |
| Product type | Busbar component support |
| Electrical connection | None |
| Number of mounting rails | 2 |
| Mounting rail adjustment | Adjustable |
| Dimensions (W × H × D) | 45 × 260 × 63 mm |
| Compatible flat busbars | 12, 15, 20, 25 and 30 × 5 or 10 mm |
| Section busbar compatibility | Yes |
| Busbar system | Wöhner 60Classic |
| Minimum permitted operating temperature | −40°C |
| Material property | Halogen-free |
| UL standard | UL 508 |
| UL classification | Suitable for feeder circuits above 250 V |
| Rated voltage under UL classification | 600 V AC |
| Rated frequency under UL classification | 50/60 Hz |
| Package quantity | 4 |
| Weight | Approximately 27.9 kg per 100 units |
| ECLASS 14.0 | 27370304 |
| ETIM classification | EC001531 |
| EAN | 4021267324841 |
The Wöhner 32484 is a mechanical component support used to mount compatible DIN rail equipment directly onto a Wöhner 60Classic busbar system.
No. The 32484 is supplied without electrical contacts and functions solely as a mechanical mounting support.
It includes two adjustable mounting rails, allowing equipment to be positioned to suit the required panel arrangement.
The support is suitable for flat busbars measuring 12, 15, 20, 25 or 30 mm wide with a thickness of 5 or 10 mm. It is also compatible with suitable section busbars.
The component support measures 45 mm wide, 260 mm high and 63 mm deep.
The rails can support compatible DIN rail devices such as relays, terminal blocks, interface modules, compact power supplies and other auxiliary control components.
Wöhner EQUES® 60Classic component supports provide panel builders with a flexible way to organise auxiliary equipment above the busbar system, helping create compact, accessible and professionally arranged industrial control assemblies.
