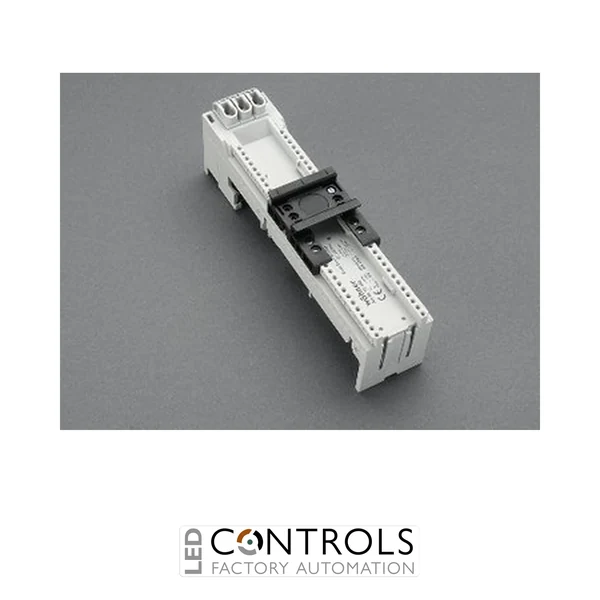

Wöhner 32486 EQUES 60Classic 32 A busbar adapter with one adjustable DIN mounting rail and front-access spring terminals for 1.5–6 mm² conductors.
£28.64
The Wöhner 32486 is a compact 32 A busbar adapter from the renowned EQUES® 60Classic range, engineered for fast and reliable installation of DIN rail mounted devices directly onto 60 mm busbar systems. Featuring one adjustable mounting rail and front-access spring terminals, it provides a clean, efficient solution for industrial switchgear, control panels and power distribution assemblies.
Designed without pre-wired leads, the adapter allows direct conductor termination using maintenance-friendly spring clamp terminals for 1.5–6 mm² conductors. Its integrated click mechanism enables quick installation and free phase selection, reducing assembly time while maintaining a secure mechanical and electrical connection.
Rated at 32 A with an operating voltage of up to 690 V AC, the Wöhner 32486 is suitable for flat busbars measuring 12, 15, 20, 25 or 30 × 5 or 10 mm, as well as compatible section busbars, making it an ideal choice for modern low-voltage distribution systems.
The Wöhner 32486 combines compact dimensions with reliable electrical performance, allowing protective devices, control equipment and auxiliary components to be mounted directly onto the busbar system. The front-access spring terminals speed up installation while eliminating the need for separate pre-wired leads.
Its integrated click mechanism enables quick installation and free phase selection, making it particularly suitable for modular switchgear construction where flexibility and efficient use of enclosure space are essential.
| Current | 32 A |
|---|---|
| Manufacturer | Wöhner |
| Series | EQUES® 60Classic |
| Part number | 32486 000 |
| Product type | Busbar adapter |
| Rated current (IEC) | 32 A |
| Rated operating voltage | 690 V AC |
| Rated insulation voltage (Ui) | 800 V AC |
| Rated impulse withstand voltage (Uimp) | 6 kV |
| Power dissipation (80% load) | 1.6 W |
| Power dissipation (100% load) | 2.5 W |
| Dimensions | 45 × 200 mm |
| Mounting rail | 1 adjustable DIN rail |
| Terminal type | Front-access spring terminals |
| Conductor size | 1.5–6 mm² |
| Compatible busbars | 12, 15, 20, 25, 30 × 5 or 10 mm and section busbars |
| Busbar system | 60Classic |
| Standards | IEC 61439-1:2020 |
| Pack quantity | 4 |
| EAN | 4021267324865 |
The Wöhner 32486 is a 32 A busbar adapter for mounting DIN rail equipment directly onto compatible Wöhner 60Classic busbar systems.
No. The adapter is supplied without leads and features front-access spring terminals for direct conductor connection.
The spring terminals accept conductors from 1.5 mm² to 6 mm².
The adapter fits 12, 15, 20, 25 and 30 mm flat busbars with 5 or 10 mm thickness, together with compatible section busbars.
The Wöhner 32486 has a continuous rated current of 32 A.
Wöhner EQUES® 60Classic busbar adapters are widely specified by professional panel builders for delivering dependable, space-saving power distribution solutions with fast installation and long-term reliability.
