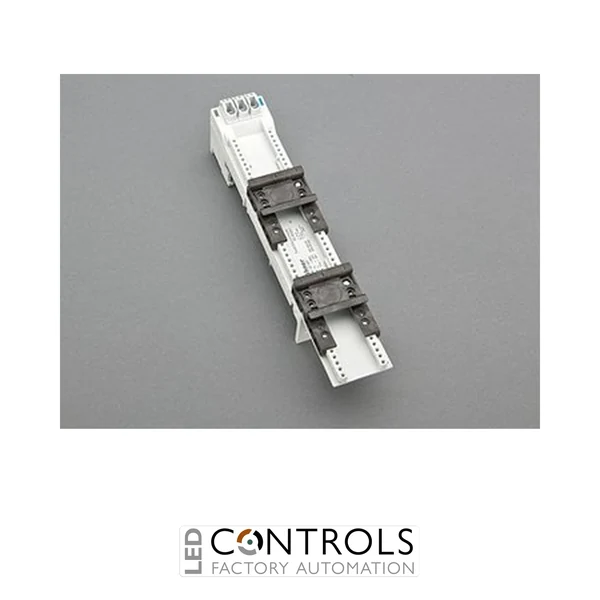

Wöhner 32487 EQUES 60Classic 32 A busbar adapter with two adjustable DIN mounting rails and front-access spring terminals for 1.5–6 mm² conductors.
£33.31
The Wöhner 32487 is a premium 32 A busbar adapter from the proven EQUES® 60Classic range, engineered to mount DIN rail devices directly onto 60 mm busbar systems. Designed with two adjustable mounting rails and front-access spring terminals, it provides a flexible and efficient solution for industrial switchboards, motor control centres and machine control panels.
The adapter is supplied without pre-fitted leads, allowing direct wiring using integrated spring clamp terminals suitable for conductors from 1.5 mm² to 6 mm². Its click-fit mounting mechanism enables rapid installation and free phase selection, reducing assembly time whilst maintaining secure electrical and mechanical performance.
Rated at 32 A for operation up to 690 V AC, the Wöhner 32487 is compatible with flat busbars measuring 12, 15, 20, 25 and 30 × 5 or 10 mm, together with compatible section busbars. Its extended 45 × 260 mm format provides additional mounting capacity for larger assemblies while maintaining a compact footprint.
The Wöhner 32487 provides a practical method of mounting protective devices and auxiliary equipment directly onto the busbar system, reducing wiring complexity while improving enclosure organisation. The front-access spring terminals allow quick conductor termination without the need for pre-wired leads.
Its two adjustable mounting rails offer additional flexibility when positioning larger devices, making it particularly suitable for modular switchgear, industrial automation systems and OEM electrical equipment. A minimum clearance of 12 mm above the adapter should be allowed to enable removal from the busbar system during maintenance.
| Current | 32 A |
|---|---|
| Phase | Three Phase |
| Manufacturer | Wöhner |
| Series | EQUES® 60Classic |
| Model | 32487 |
| Full part number | 32487 000 |
| Product type | Busbar adapter |
| Number of poles | 3 |
| Rated current (IEC) | 32 A |
| Rated operating voltage | 690 V AC |
| Rated insulation voltage (Ui) | 800 V AC |
| Rated impulse withstand voltage (Uimp) | 6 kV |
| Power dissipation | 1.6 W (typical 80% load), 2.5 W (full load) |
| Dimensions (W × H) | 45 × 260 mm |
| Mounting rails | 2 adjustable DIN rails |
| Terminal type | Front-access spring clamp terminals |
| Conductor size | 1.5–6 mm² |
| Compatible busbars | 12, 15, 20, 25, 30 × 5 or 10 mm and section busbars |
| Standards | IEC 61439-1:2020 |
| Pack quantity | 4 |
| EAN | 4021267324872 |
The Wöhner 32487 is a 32 A busbar adapter designed for mounting DIN rail equipment directly onto compatible Wöhner 60Classic busbar systems.
No. The adapter is supplied without leads and features front-access spring clamp terminals for direct conductor connection.
The integrated spring terminals accept conductors from 1.5 mm² to 6 mm².
The adapter fits 12, 15, 20, 25 and 30 mm flat busbars with 5 or 10 mm thickness, together with compatible section busbars.
The Wöhner 32487 has a continuous rated current of 32 A.
Wöhner EQUES® 60Classic busbar adapters are trusted worldwide for delivering compact, reliable and efficient power distribution solutions that simplify panel construction while maintaining excellent long-term performance.
