Why Choose the Wöhner 32498 Busbar Adapter?

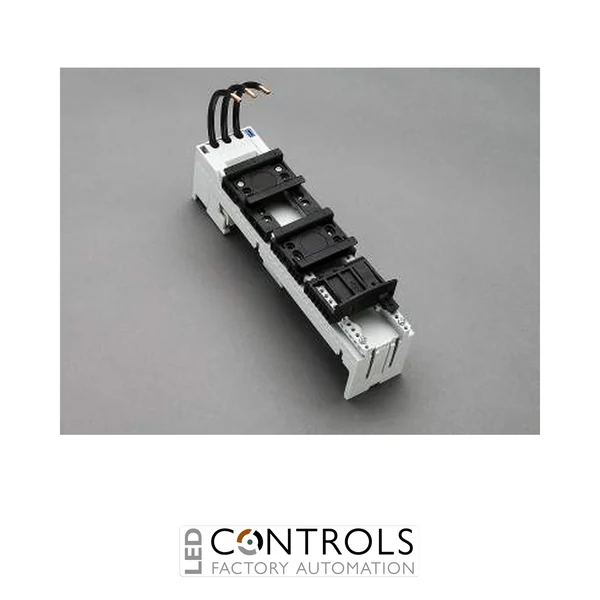

The Wöhner 32498 is a high-quality 32 A busbar adapter from the trusted EQUES® 60Classic range, specifically designed for mounting ABB MS116 and MS132 direct starters directly onto 60 mm busbar systems. Supplied with AWG 10 (6 mm²) pre-installed leads, it provides a fast, reliable and professional solution for industrial motor starter installations while reducing wiring time and simplifying panel assembly.
Designed for compatibility with flat busbars measuring 12, 15, 20, 25 and 30 × 5 or 10 mm, as well as compatible section busbars, the adapter incorporates Wöhner's proven click-fit mounting mechanism for rapid installation. Ultrasonically sealed conductor ends improve durability and simplify connection to the motor starter.
Rated at 32 A and manufactured from halogen-free materials, the Wöhner 32498 complies with IEC 61439-1:2020 and UL 508, making it suitable for demanding industrial switchgear, machine control panels and power distribution systems worldwide.
Key Advantages
- Designed specifically for ABB MS116 and MS132 direct starters.
- 32 A rated busbar adapter.
- Supplied with AWG 10 (6 mm²) factory-fitted leads.
- Fast click-fit installation onto Wöhner 60Classic busbars.
- Ultrasonically sealed conductor ends improve reliability.
- Compatible with flat and section busbars.
- Halogen-free construction.
Key Features
- Wöhner EQUES® 60Classic series.
- Part number: 32498.
- For ABB MS116 and MS132 direct starters.
- 32 A rated current.
- Factory-fitted AWG 10 (6 mm²) leads.
- 45 × 200 mm format.
- Click-fit busbar mounting.
- Suitable for industrial motor starter assemblies.
Fast Installation for ABB Motor Starters
The Wöhner 32498 is engineered to simplify the installation of ABB MS116 and MS132 manual motor starters by providing factory-fitted conductors and direct busbar mounting. The integrated click mechanism allows the adapter to be quickly positioned on the busbar while reducing installation time and improving overall panel consistency.
Its compact design helps maximise available enclosure space while maintaining excellent accessibility for maintenance. For safe removal during servicing, Wöhner recommends allowing a minimum clearance of 12 mm above the adapter.
Typical Applications
- ABB MS116 motor starter installations.
- ABB MS132 motor starter installations.
- Industrial switchboards.
- Machine control panels.
- Motor control centres (MCCs).
- OEM electrical equipment.
- Industrial automation systems.
