Why Choose the Wöhner 32534 EQUES 60Classic Busbar Adapter?

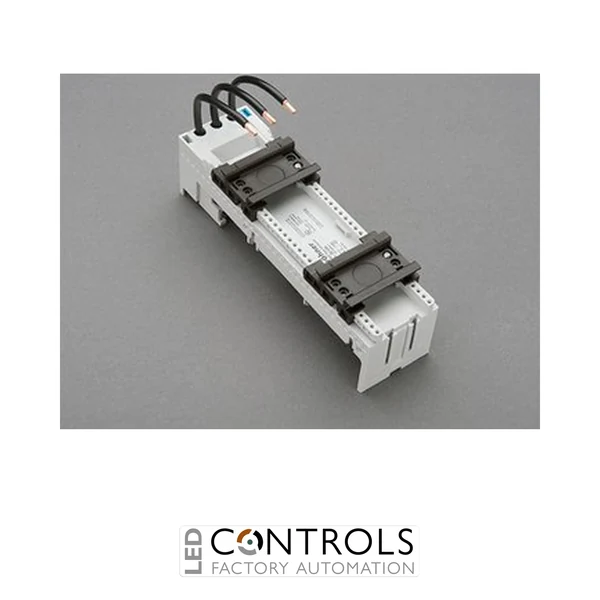

The Wöhner 32534 is a high-quality 32 A busbar adapter designed for mounting Allen-Bradley 140M-C and 140M-D reversing starters onto Wöhner 60Classic busbar systems. Manufactured as part of the proven EQUES product range, this adapter delivers a safe, compact and efficient solution for industrial motor control and power distribution applications.
Designed specifically for panel builders and OEM machine manufacturers, the adapter simplifies installation by allowing compatible reversing starters to mount directly onto flat or section busbars. The integrated click mechanism ensures fast and secure installation, while the factory-fitted AWG 10 conductors with ultrasonically sealed ends provide dependable long-term electrical connections.
With a 32 A rated current, 690 V AC rated operating voltage and compatibility with a wide range of busbar sizes, the Wöhner 32534 is an excellent choice for industrial control panels, motor control centres and modular power distribution systems requiring reliable reversing motor starter installations.
Key Advantages
- Purpose-built 32 A busbar adapter for reversing starters.
- Compatible with Allen-Bradley 140M-C and 140M-D motor starters.
- 690 V AC rated operating voltage for industrial applications.
- Integrated click mechanism enables quick installation.
- Factory-fitted AWG 10 (6 mm²) conductors.
- Suitable for flat and section busbars within the Wöhner 60Classic system.
Key Features
- Wöhner EQUES 60Classic busbar adapter.
- 32 A rated current.
- Designed for Allen-Bradley 140M-C and 140M-D reversing starters.
- 54 × 200 mm compact adapter dimensions.
- Supplied with AWG 10 (6 mm²) conductors.
- Compatible with 12, 15, 20, 25 and 30 mm busbars.
- Suitable for flat and section busbars.
- IEC 61439-1:2020 and UL 508 compliant.
Reliable Motor Control for Industrial Applications
The Wöhner 32534 enables Allen-Bradley reversing motor starters to be mounted directly onto modular busbar systems, reducing installation time and minimising conventional wiring. This creates cleaner panel layouts while improving reliability and simplifying maintenance.
As part of the EQUES 60Classic range, the adapter integrates seamlessly into Wöhner power distribution systems, supporting efficient electrical panel construction for industrial automation, machinery and motor control applications.
Typical Applications
- Industrial motor control centres.
- Reversing motor starter installations.
- Machine building and OEM equipment.
- Industrial control panels.
- Factory automation systems.
- Modular power distribution assemblies.
