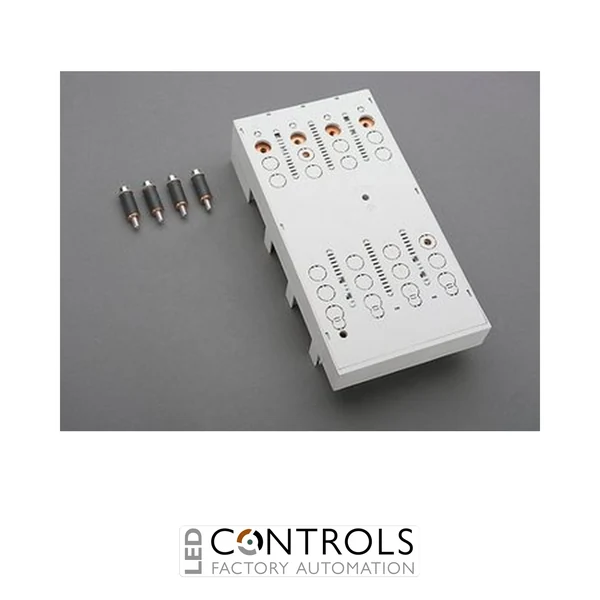

Wöhner 32580 EQUES 60Classic 250 A four-pole busbar adapter for the Eaton NZM2-XKR4O moulded case circuit breaker, featuring a left-side neutral and top system connection.
£133.02
The Wöhner 32580 is a heavy-duty 250 A four-pole busbar adapter designed for mounting the Eaton NZM2-XKR4O moulded case circuit breaker directly onto Wöhner 60Classic busbar systems. Also identified by the complete part number 32580 000, this EQUES adapter provides a secure and space-efficient interface for industrial switchgear and low-voltage power distribution assemblies.
The adapter features a 3-pole plus neutral configuration, with the neutral conductor positioned on the left-hand side. Its top system connection supports organised panel layouts while reducing conventional wiring and simplifying the integration of compatible Eaton circuit protection equipment.
With an IEC rated current of 250 A, a rated operating voltage of 690 V AC and dimensions of 140 × 270 × 35 mm, the Wöhner 32580 is suitable for demanding industrial distribution systems. It can be installed on flat busbars measuring 12, 15, 20, 25 or 30 mm wide and 5 or 10 mm thick, as well as compatible section busbars.
The Wöhner 32580 allows a compatible Eaton moulded case circuit breaker to be installed directly on a modular busbar system. This arrangement reduces point-to-point wiring, supports compact switchboard layouts and provides a dependable connection between the circuit protection device and the electrical distribution system.
Its four-pole design makes the adapter suitable for applications requiring switched or distributed neutral conductors. The dedicated neutral position, top system connection and robust construction help panel builders create organised and maintainable low-voltage distribution assemblies.
| Current | 250 A |
|---|---|
| Phase | Three Phase |
| Manufacturer | Wöhner |
| Series | EQUES 60Classic |
| Model | 32580 |
| Part number | 32580 000 |
| Product type | Four-pole busbar adapter |
| Rated current (IEC) | 250 A |
| Rated current (UL) | 250 A |
| Rated operating voltage (IEC) | 690 V AC |
| Rated voltage (UL) | 600 V AC |
| Rated insulation voltage | 800 V AC |
| Rated impulse withstand voltage | 6 kV |
| Rated frequency | 50 / 60 Hz |
| Compatible circuit breaker | Eaton NZM2-XKR4O |
| Number of poles | 3-pole + N |
| Neutral position | Left-hand side |
| System connection | Top |
| Dimensions (W × H × D) | 140 × 270 × 35 mm |
| Weight | approx. 1.8 kg |
| Compatible busbars | 12, 15, 20, 25 and 30 × 5 or 10 mm, plus section busbars |
| Mounting type | Direct busbar mounting |
| Material property | Halogen-free |
| Standards | IEC 61439-1:2020, UL 508 |
| EAN | 4021267325800 |
The Wöhner 32580 is used to mount an Eaton NZM2-XKR4O moulded case circuit breaker directly onto a Wöhner 60Classic busbar system.
The adapter is specifically designed for the Eaton NZM2-XKR4O moulded case circuit breaker.
The Wöhner 32580 has an IEC and UL rated current of 250 A.
The adapter has a 3-pole plus neutral configuration, with the neutral positioned on the left-hand side.
The adapter supports flat busbars measuring 12, 15, 20, 25 or 30 mm wide and 5 or 10 mm thick, together with compatible section busbars.
Wöhner EQUES 60Classic busbar adapters are trusted by panel builders, switchgear manufacturers and industrial engineers for creating compact, reliable and efficiently connected power distribution assemblies.
