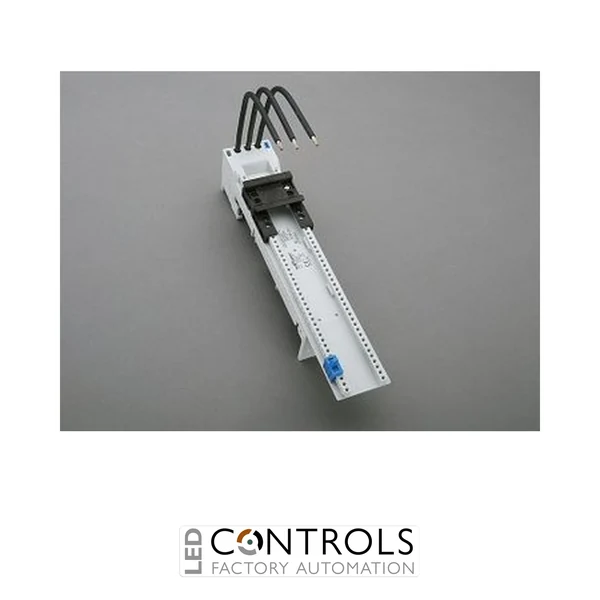

Wöhner 32638 EQUES 60Classic 32 A three-pole busbar adapter for Siemens S0 direct starters with spring terminal connections, supplied with 165 mm AWG 10 leads.
£56.46
The Wöhner 32638 is a specialised 32 A, 3-pole busbar adapter designed for mounting compatible Siemens S0 direct starters with spring terminal connections onto industrial busbar systems. As part of the proven Wöhner EQUES® 60Classic range, it provides a compact and dependable solution for motor control, power distribution and industrial automation panels.
The adapter is supplied with 165 mm leads manufactured from AWG 10 (6 mm²) conductors. Ultrasonically sealed conductor ends provide a secure and durable connection, while the integrated click mechanism simplifies installation by securely engaging the adapter when it is pushed onto the busbar.
With an IEC rated current of 32 A, a rated operating voltage of 690 V AC and compatibility with a wide selection of flat and section busbars, the Wöhner 32638 is ideal for machine builders, panel manufacturers and electrical engineers requiring reliable integration of Siemens S0 motor starters.
Busbar adapters allow motor starters and control equipment to be mounted directly onto power distribution busbars, reducing conventional wiring and helping create compact, organised panel layouts. The Wöhner 32638 combines secure mechanical mounting with pre-fitted conductors for efficient installation of compatible Siemens S0 direct starters.
The adapter's click mechanism provides positive engagement with the busbar, while its ultrasonically sealed conductor ends support dependable long-term electrical performance. The short-circuit capacity of the completed assembly depends on the selected motor starter and the associated protective equipment.
| Current | 32 A |
|---|---|
| Manufacturer | Wöhner |
| Series | EQUES® 60Classic |
| Model | 32638 |
| Manufacturer part number | 32638 000 |
| Type number | EEC6025-L |
| Product type | Busbar adapter |
| Compatible equipment | Siemens S0 direct starter with spring terminal connection |
| Rated current (IEC) | 32 A |
| Rated operating voltage (IEC) | 690 V AC |
| Rated insulation voltage (Ui) | 800 V AC |
| Rated impulse withstand voltage (Uimp) | 6 kV |
| Rated current (UL) | 32 A |
| Rated voltage (UL) | 600 V AC |
| Rated frequency (UL) | 50 / 60 Hz |
| Number of poles | 3 |
| Lead length | 165 mm |
| Lead size | AWG 10 (6 mm²) |
| Wire stripping length | 9 mm |
| Compatible busbars | 12, 15, 20, 25 and 30 × 5 mm; 12, 15, 20, 25 and 30 × 10 mm; section busbars |
| Dimensions (W × H × D) | 45 × 260 × 63 mm |
| Weight | Approx. 0.321 kg |
| Minimum operating temperature | -40°C |
| Material | Halogen-free |
| Standards | IEC 61439-1:2020, UL 508 |
| Approvals | UL, CSA, DNV GL |
| EAN | 4021267326388 |
| Pack size | 4 |
The Wöhner 32638 is a 3-pole busbar adapter used to mount and connect a compatible Siemens S0 direct starter with spring terminal connections to a Wöhner 60Classic busbar system.
The adapter has an IEC and UL rated current of 32 A.
The Wöhner 32638 is supplied with 165 mm AWG 10 (6 mm²) leads featuring ultrasonically sealed conductor ends.
The adapter supports flat busbars from 12 to 30 mm wide with 5 mm or 10 mm thickness, as well as compatible section busbars.
A minimum clearance of 12 mm above the adapter is required so that it can be removed from the busbar system.
Wöhner EQUES® 60Classic busbar adapters are trusted by machine builders, panel manufacturers and industrial engineers for efficient motor starter integration and dependable low-voltage power distribution.
