Why Choose the Wöhner 32651 Busbar Adapter?

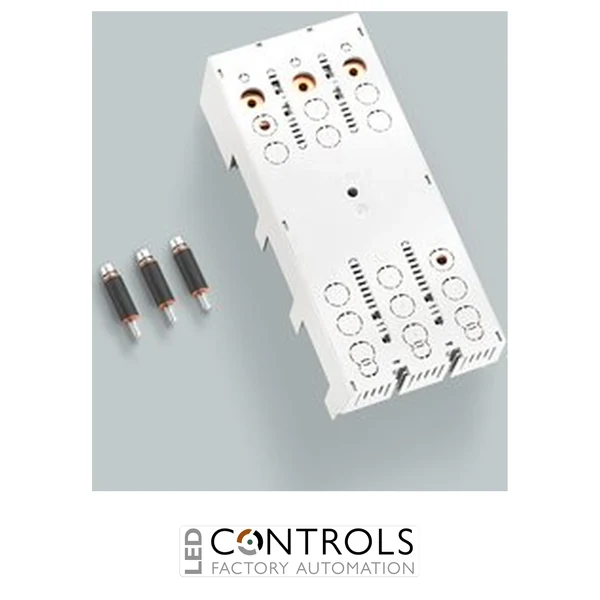

The Wöhner 32651 is a premium 25 A, 3-pole busbar adapter from the Wöhner EQUES® 60Classic range. It has been specifically developed for mounting Siemens S00 direct starters with screw terminal connections directly onto Wöhner busbar systems, delivering a compact, reliable and efficient solution for industrial motor control and power distribution applications.
The adapter is supplied with 165 mm AWG 12 (4 mm²) flying leads, allowing rapid installation and simplified wiring to compatible Siemens S00 starters. Ultrasonically sealed conductor ends provide dependable long-term performance, while the integrated click-fit mechanism enables quick and secure installation onto compatible busbars without additional mounting hardware.
Rated at 25 A with a maximum operating voltage of 690 V AC, the Wöhner 32651 is suitable for industrial control panels, motor control centres, OEM machinery and low-voltage distribution systems where reliable busbar-mounted motor starter installation is required.
Key Advantages
- Designed specifically for Siemens S00 direct starters with screw terminal connections.
- 25 A IEC and UL rated current.
- Supplied with 165 mm AWG 12 (4 mm²) flying leads.
- Ultrasonically sealed conductor ends improve reliability.
- Integrated click mechanism enables rapid installation.
- Compatible with a wide range of Wöhner flat and section busbars.
Key Features
- Wöhner EQUES® 60Classic system.
- 3-pole busbar adapter.
- Compatible with Siemens S00 direct starters with screw terminals.
- 25 A rated current.
- 690 V AC rated operating voltage.
- 800 V AC rated insulation voltage (Ui).
- 6 kV rated impulse withstand voltage (Uimp).
- Supplied with 165 mm AWG 12 (4 mm²) flying leads.
- Halogen-free insulating construction.
Efficient Motor Starter Installation
The Wöhner 32651 enables Siemens S00 direct starters with screw terminal connections to be mounted directly onto Wöhner 60Classic busbar systems, reducing installation time and creating compact, organised control panels. The click-fit mounting mechanism provides secure installation while the pre-fitted flying leads simplify wiring during assembly.
Its robust mechanical design, halogen-free construction and internationally recognised approvals make it well suited to demanding industrial environments requiring reliable motor control and low-voltage power distribution.
Typical Applications
- Industrial motor control centres.
- Machine control panels.
- OEM electrical equipment.
- Factory automation systems.
- Industrial switchboards.
- Low-voltage power distribution assemblies.
