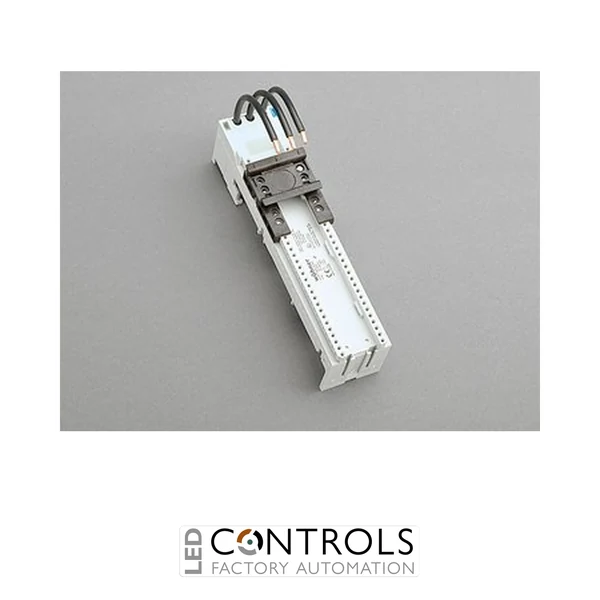

Why Choose the Wöhner 32655 Busbar Adapter?
The Wöhner 32655 is a high-quality 32 A, 3-pole busbar adapter from the proven Wöhner EQUES® 60Classic range. Designed for compact motor control assemblies, it enables compatible motor starters and switching devices to be mounted directly onto Wöhner busbar systems, reducing installation time whilst creating a neat, space-efficient switchboard layout.
The adapter features one adjustable mounting rail and is supplied with 200 mm AWG 10 (6 mm²) flying leads. The conductor ends are ultrasonically sealed to improve long-term electrical reliability, while the integrated click mechanism allows the adapter to be securely pushed onto the busbar for rapid installation without additional fixing hardware.
With a 32 A rated current, 800 V AC rated insulation voltage and compatibility with numerous flat and section busbars, the Wöhner 32655 is ideal for industrial control panels, OEM machinery, motor control centres and low-voltage power distribution systems.
Key Advantages
- 32 A IEC and UL rated current.
- Supplied with 200 mm AWG 10 (6 mm²) flying leads.
- One adjustable mounting rail for flexible equipment positioning.
- Ultrasonically sealed conductor ends improve reliability.
- Integrated click-fit mechanism for rapid installation.
- Compatible with numerous Wöhner flat and section busbars.
Key Features
- Wöhner EQUES® 60Classic system.
- 3-pole busbar adapter.
- Rated current: 32 A.
- Rated operating voltage: 690 V AC.
- Rated insulation voltage (Ui): 800 V AC.
- Rated impulse withstand voltage (Uimp): 6 kV.
- 200 mm AWG 10 (6 mm²) flying leads.
- One adjustable DIN mounting rail.
- Halogen-free insulating construction.
Efficient Busbar Mounting for Industrial Panels
The Wöhner 32655 enables motor control equipment to be mounted directly onto 60Classic busbar systems, helping reduce panel wiring while creating a compact and organised installation. The adjustable mounting rail provides installation flexibility, making it suitable for a wide variety of industrial switching devices.
Its robust halogen-free construction, click-fit mounting mechanism and ultrasonically sealed conductors provide dependable long-term performance in demanding industrial environments where reliability and installation speed are essential.
Typical Applications
- Industrial motor control centres.
- Machine control panels.
- OEM electrical equipment.
- Factory automation systems.
- Industrial switchboards.
- Low-voltage power distribution assemblies.
