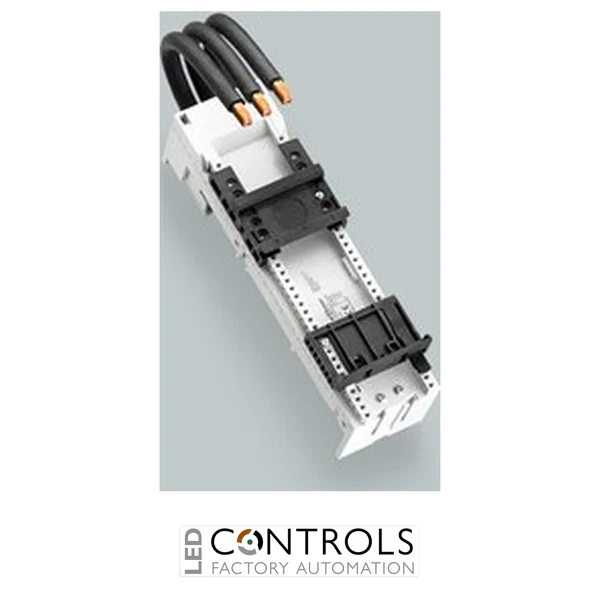

Wöhner 32662 EQUES 60Classic 80 A three-pole busbar adapter for Siemens SIRIUS frame size S2 circuit breakers with 200 mm AWG 4 (25 mm²) leads.
£74.70
The Wöhner 32662 is a high-performance 80 A, 3-pole busbar adapter from the Wöhner EQUES® 60Classic range. It is specifically designed for mounting Siemens SIRIUS frame size S2 circuit breakers directly onto Wöhner busbar systems, providing a compact, reliable and efficient solution for industrial switchboards and motor control applications.
Supplied with 200 mm AWG 4 (25 mm²) flying leads, the adapter features ultrasonically sealed conductor ends for long-term reliability and an integrated click mechanism that enables rapid installation directly onto compatible busbars. This significantly reduces wiring time while improving panel layout and maintenance accessibility.
Rated at 80 A with a maximum operating voltage of 690 V AC, the Wöhner 32662 complies with IEC 61439-1:2020 and UL 508, making it suitable for demanding industrial power distribution and machine control systems.
The Wöhner 32662 enables Siemens SIRIUS S2 frame circuit breakers to be mounted directly onto Wöhner 60Classic busbar systems, significantly reducing wiring time whilst creating a clean and organised panel layout. The click-fit mechanism and pre-installed flying leads simplify installation and improve maintenance access.
Its robust construction, halogen-free materials and international approvals make it ideal for OEM machinery, industrial switchboards, motor control centres and commercial low-voltage power distribution systems.
| Current | 80 A |
|---|---|
| Manufacturer | Wöhner |
| Series | EQUES® 60Classic |
| Model | 32662 |
| Manufacturer Part Number | 32662 000A |
| Type Number | EEC60100-L |
| Product Type | Busbar adapter |
| Compatible Equipment | Siemens SIRIUS frame size S2 circuit breaker |
| Rated Current (IEC) | 80 A |
| Rated Operating Voltage | 690 V AC |
| Rated Insulation Voltage (Ui) | 800 V AC |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Rated Current (UL) | 80 A |
| Rated Voltage (UL) | 600 V AC |
| Rated Frequency (UL) | 50 / 60 Hz |
| SCCR | Up to 65 kA (protected, application dependent) |
| Number of Poles | 3 |
| Lead Length | 200 mm |
| Lead Size | AWG 4 (25 mm²) |
| Power Dissipation | 4.6 W (80% load), 7.3 W (full load) |
| Compatible Busbars | 12, 15, 20, 25 & 30 × 5 mm, 12, 15, 20, 25 & 30 × 10 mm and section busbars |
| Dimensions (W × H × D) | 54 × 200 × 63 mm |
| Weight | Approx. 0.521 kg |
| Minimum Operating Temperature | -40°C |
| Material | Halogen-free |
| Standards | IEC 61439-1:2020, UL 508 |
| Approvals | UL, CSA |
| EAN | 4021267326623 |
| Pack Quantity | 1 |
The Wöhner 32662 is an 80 A three-pole busbar adapter designed to mount Siemens SIRIUS frame size S2 circuit breakers directly onto Wöhner 60Classic busbar systems.
It is designed specifically for Siemens SIRIUS frame size S2 circuit breakers.
The adapter is supplied with 200 mm AWG 4 (25 mm²) flying leads with ultrasonically sealed conductor ends.
The adapter supports flat busbars from 12 mm to 30 mm wide in both 5 mm and 10 mm thicknesses, together with compatible section busbars.
The adapter complies with IEC 61439-1:2020 and UL 508 and carries UL and CSA approvals.
Wöhner EQUES® busbar adapters are trusted by switchgear manufacturers, OEMs and industrial engineers worldwide for delivering compact, reliable and efficient low-voltage power distribution solutions.
