Why Choose the Wöhner 32663 Busbar Adapter?

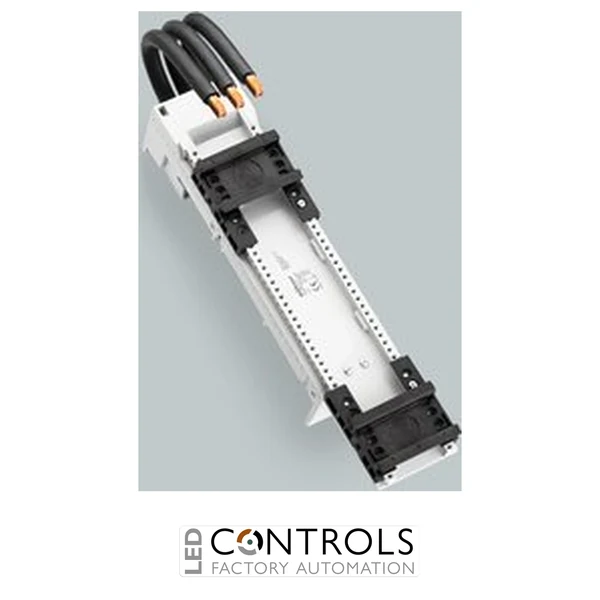

The Wöhner 32663 is a robust 80 A, 3-pole busbar adapter from the Wöhner EQUES® 60Classic range. It has been specifically designed for mounting Siemens SIRIUS frame size S2 direct starters directly onto Wöhner busbar systems, providing a compact, reliable and efficient solution for industrial motor control applications.
Supplied with 260 mm AWG 4 (25 mm²) flying leads, the adapter simplifies wiring to Siemens S2 starters whilst reducing assembly time. Ultrasonically sealed conductor ends improve long-term electrical reliability, and the integrated click mechanism allows secure installation directly onto the busbar without additional mounting hardware.
Rated at 80 A with a 690 V AC operating voltage, the Wöhner 32663 complies with IEC 61439-1:2020 and UL 508, making it an ideal choice for OEM machinery, industrial control panels, motor control centres and low-voltage power distribution systems.
Key Advantages
- Designed specifically for Siemens SIRIUS frame size S2 direct starters.
- 80 A IEC and UL rated current.
- Supplied with 260 mm AWG 4 (25 mm²) flying leads.
- Ultrasonically sealed conductor ends improve long-term reliability.
- Integrated click-fit mechanism enables fast installation.
- Compatible with a wide range of Wöhner flat and section busbars.
Key Features
- Wöhner EQUES® 60Classic system.
- 3-pole busbar adapter.
- Compatible with Siemens SIRIUS frame size S2 direct starters.
- Rated current: 80 A.
- Rated operating voltage: 690 V AC.
- Rated insulation voltage (Ui): 800 V AC.
- Rated impulse withstand voltage (Uimp): 6 kV.
- 260 mm AWG 4 (25 mm²) flying leads.
- Top connection to the system.
- Halogen-free insulating construction.
Efficient Mounting for Siemens SIRIUS S2 Direct Starters
The Wöhner 32663 enables Siemens SIRIUS frame size S2 direct starters to be mounted directly onto Wöhner 60Classic busbar systems, reducing installation time and minimising conventional panel wiring. The longer 260 mm flying leads provide additional flexibility when connecting to larger motor starter assemblies.
Its robust halogen-free construction, integrated click-fit mounting system and internationally recognised approvals make it ideal for demanding industrial environments where reliable motor control and efficient power distribution are essential.
Typical Applications
- Industrial motor control centres.
- Machine control panels.
- OEM electrical equipment.
- Factory automation systems.
- Industrial switchboards.
- Low-voltage power distribution assemblies.
