Why Choose the Wöhner 32719 EQUES 185Power Busbar Adapter?

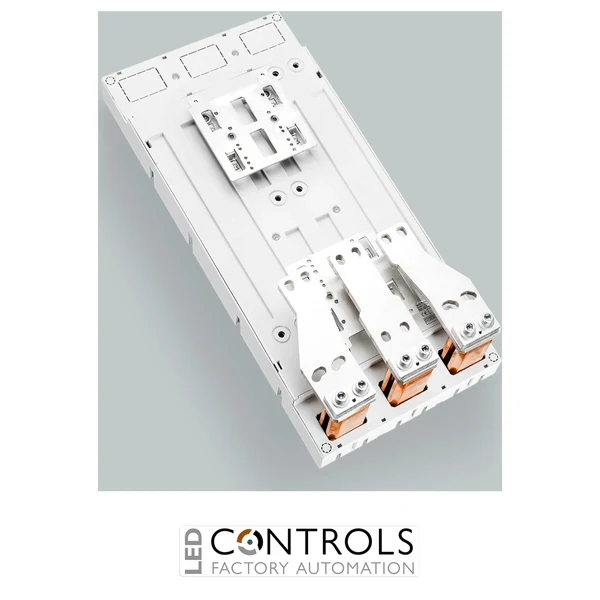

The Wöhner 32719 is a high-capacity 1200 A busbar adapter designed to integrate compatible Schneider Electric circuit breakers into the Wöhner 185Power busbar system. Also identified by the extended manufacturer part number 32719000A, this EQUES adapter provides a secure and efficient interface for high-current low-voltage power distribution assemblies.
The adapter is specifically designed for Schneider Electric Compact NS1250 and ComPacT NS1250 circuit breakers. It features a bottom-mounted clamp connection and a changed phase arrangement, allowing the circuit breaker to be connected correctly within compatible three-phase switchboard configurations.
With a rated current of 1200 A, a rated operating voltage of up to 1000 V AC and compatibility with copper busbars from 30 × 10 mm to 120 × 10 mm, the Wöhner 32719 is suitable for demanding industrial distribution systems. Its 300 mm-wide format and 185 mm busbar spacing support compact, modular installation in professional switchgear assemblies.
Key Advantages
- High-capacity 1200 A busbar adapter for industrial power distribution.
- Designed for the modular Wöhner 185Power system.
- Compatible with Schneider Electric Compact NS1250 and ComPacT NS1250 circuit breakers.
- Bottom clamp connection supports secure and efficient installation.
- Changed phase arrangement accommodates the required circuit-breaker connection layout.
- Supports multiple copper busbar widths for flexible switchboard design.
Key Features
- Wöhner EQUES 185Power busbar adapter.
- 1200 A rated current.
- 1000 V AC rated operating voltage.
- Bottom-mounted clamp connection.
- Changed phase arrangement.
- Compatible with Schneider Electric Compact NS1250.
- Compatible with Schneider Electric ComPacT NS1250.
- Suitable for copper busbars from 30 × 10 mm to 120 × 10 mm.
Reliable High-Current Power Distribution
Busbar adapters provide a purpose-designed electrical and mechanical interface between a busbar system and a compatible circuit breaker. The Wöhner 32719 enables an NS1250 circuit breaker to be installed directly onto a 185Power assembly, helping reduce conventional cable connections and support a compact switchboard layout.
Its high current capacity, broad busbar compatibility and dedicated clamp connection make it suitable for demanding electrical installations. The changed phase arrangement provides the required conductor sequence for the specified Schneider Electric circuit breakers, helping panel builders achieve an organised and correctly configured power distribution assembly.
Typical Applications
- Industrial low-voltage switchboards.
- Main power distribution panels.
- Motor control centres.
- Commercial and infrastructure distribution systems.
- Manufacturing and process-control facilities.
- OEM switchgear and panel-building projects.
