Why Choose the Wöhner 32722 EQUES 185Power Busbar Adapter?

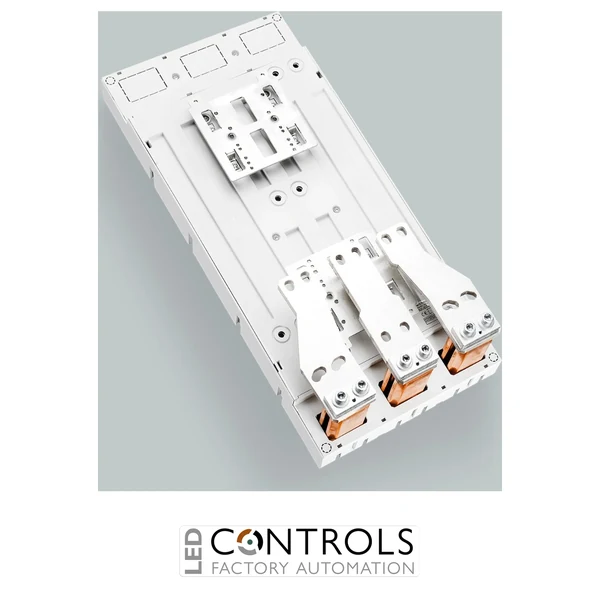

The Wöhner 32722 is a high-performance 1320 A busbar adapter designed for integrating large-frame circuit breakers into the Wöhner EQUES 185Power busbar system. Also identified by the manufacturer part number 32722000A, this adapter provides a secure, space-saving and reliable connection for demanding industrial power distribution applications.
Designed with a bottom clamp connection and changed phase arrangement, the adapter is compatible with ABB Tmax T7 (1600 A), ABB XT7 (1600 A), ABB Emax E1.2 (1600 A) and Siemens 3VA27 (1600 A) circuit breakers. It supports copper busbars measuring 30, 40, 60, 80, 100 and 120 × 10 mm, providing excellent flexibility across a wide range of switchboard designs.
With a rated current of 1320 A, halogen-free construction and compliance with IEC 61439-1 and UL 508 requirements, the Wöhner 32722 is an ideal solution for OEM panel builders, industrial control systems and commercial low-voltage distribution assemblies.
Key Advantages
- High-capacity 1320 A busbar adapter for demanding applications.
- Designed specifically for the Wöhner EQUES 185Power system.
- Compatible with ABB Tmax T7, XT7, Emax E1.2 and Siemens 3VA27 1600 A circuit breakers.
- Bottom clamp connection provides secure installation.
- Supports multiple copper busbar sizes from 30 × 10 mm to 120 × 10 mm.
- Halogen-free construction for safer switchboard installations.
Key Features
- Wöhner EQUES 185Power busbar adapter.
- 1320 A rated current.
- Bottom clamp connection.
- Changed phase arrangement.
- Suitable for ABB Tmax T7 (1600 A).
- Suitable for ABB XT7 (1600 A).
- Suitable for ABB Emax E1.2 (1600 A).
- Suitable for Siemens 3VA27 (1600 A).
- Compatible with 30, 40, 60, 80, 100 and 120 × 10 mm copper busbars.
Reliable High-Current Power Distribution
The Wöhner 32722 provides a secure mechanical and electrical interface between high-current moulded case circuit breakers and the EQUES 185Power busbar system. By mounting the breaker directly onto the busbar system, installation time is reduced while improving panel layout and reducing conventional cable connections.
Its modular design supports modern industrial switchgear requiring compact construction, high reliability and simplified maintenance. Compatibility with multiple ABB and Siemens breaker ranges makes it a versatile choice for OEMs, panel builders and electrical contractors.
Typical Applications
- Industrial low-voltage switchboards.
- Main power distribution systems.
- Motor control centres.
- Commercial electrical installations.
- OEM machinery and automation equipment.
- Industrial distribution panels.
