Why Choose the Wöhner 32724 EQUES 185Power Busbar Adapter?

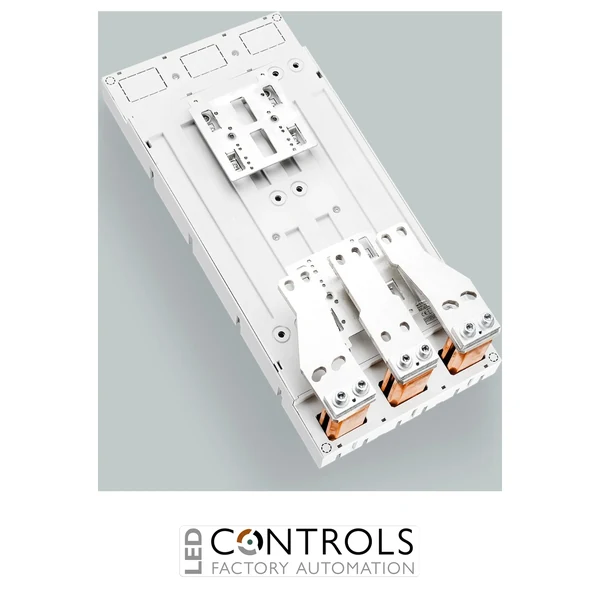

The Wöhner 32724 is a high-capacity 1320 A busbar adapter engineered for integrating large-frame ABB and Siemens circuit breakers into the Wöhner EQUES 185Power busbar system. Also identified by the manufacturer part number 32724000A, this adapter provides a secure, space-saving and reliable solution for demanding industrial low-voltage power distribution applications.
Designed with a bottom screw connection and a changed phase arrangement, the adapter is compatible with ABB Tmax T7 (1600 A), ABB XT7 (1600 A), ABB Emax E1.2 (1600 A) and Siemens 3VA27 (1600 A) circuit breakers. It supports copper busbars measuring 30, 40, 60, 80, 100 and 120 × 10 mm, providing excellent flexibility for industrial switchboard construction.
Manufactured from halogen-free materials and compliant with IEC 61439-1:2020 and UL 508, the Wöhner 32724 is suitable for OEM panel builders, machinery manufacturers and commercial electrical installations requiring dependable high-current distribution. It is not suitable for systems with CrossLink protection modules.
Key Advantages
- High-capacity 1320 A busbar adapter for demanding industrial applications.
- Designed specifically for the Wöhner EQUES 185Power system.
- Compatible with ABB Tmax T7, XT7, Emax E1.2 and Siemens 3VA27 1600 A circuit breakers.
- Bottom screw connection ensures a secure mechanical and electrical installation.
- Supports copper busbars from 30 × 10 mm to 120 × 10 mm.
- Halogen-free construction for enhanced installation safety.
Key Features
- Wöhner EQUES 185Power busbar adapter.
- 1320 A rated current.
- Bottom screw connection.
- Changed phase arrangement.
- Compatible with ABB Tmax T7 (1600 A).
- Compatible with ABB XT7 (1600 A).
- Compatible with ABB Emax E1.2 (1600 A).
- Compatible with Siemens 3VA27 (1600 A).
- Suitable for copper busbars measuring 30, 40, 60, 80, 100 and 120 × 10 mm.
Reliable High-Current Power Distribution
The Wöhner 32724 provides a robust electrical and mechanical interface between high-current moulded case circuit breakers and the EQUES 185Power busbar system. By mounting the breaker directly onto the busbar assembly, installation time is reduced while creating a compact, organised and reliable switchboard layout.
Its modular design supports modern industrial switchgear requiring high reliability, simplified installation and efficient maintenance. Compatibility with multiple ABB and Siemens breaker families makes it a versatile choice for OEMs, panel builders and electrical contractors.
Typical Applications
- Industrial low-voltage switchboards.
- Main power distribution systems.
- Motor control centres.
- Commercial electrical installations.
- OEM machinery and automation equipment.
- Industrial distribution panels.
