Why Choose the Wöhner 32742 EQUES 185Power Busbar Adapter?

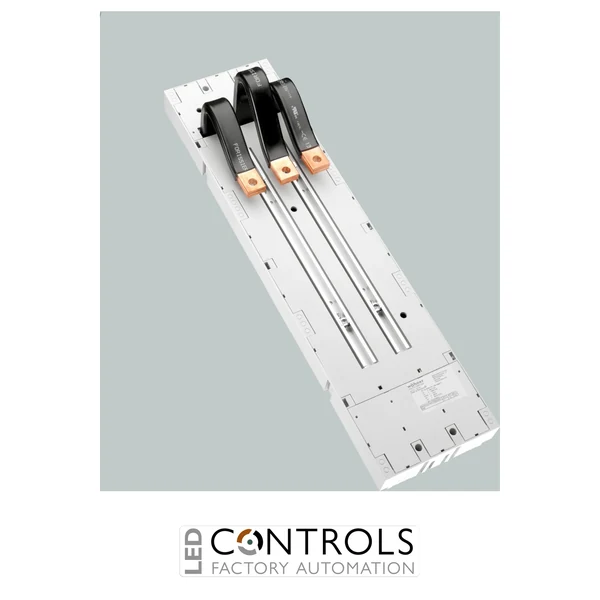

The Wöhner 32742 is a robust and versatile 630 A busbar adapter designed for mounting moulded-case circuit breakers and other compatible switching devices within industrial power distribution systems. Part of the advanced Wöhner EQUES 185Power system, this universal adapter provides a dependable connection between electrical equipment and high-current busbars.
The adapter supports devices with a phase spacing of 43–46 mm and features a top-mounted flat clamp connection. Its universal configuration gives panel builders and OEM manufacturers greater flexibility when integrating compatible circuit breakers from leading manufacturers into switchboards, distribution panels and motor control centres.
With an IEC rated current of 630 A, an 800 V AC rated operating voltage and compatibility with busbars from 30 × 10 mm to 120 × 10 mm, the Wöhner 32742 is suitable for demanding low-voltage power distribution applications. The adapter can also be installed over a busbar support in systems with or without a CrossLink® touch-safe protection cover.
Key Advantages
- Universal 630 A busbar adapter for industrial power distribution.
- Part of the modular Wöhner EQUES 185Power system.
- Suitable for devices with a 43–46 mm phase spacing.
- Compatible with multiple busbar widths from 30 to 120 mm.
- Top connection with a reliable flat clamp contact system.
- Can be mounted over the busbar support with or without CrossLink® protection covers.
Key Features
- Wöhner EQUES 185Power busbar adapter.
- 630 A IEC and UL rated current.
- 800 V AC IEC rated operating voltage.
- 1000 V AC rated insulation voltage.
- 12 kV rated impulse withstand voltage.
- Universal design for 43–46 mm phase spacing.
- Top-mounted flat clamp connection.
- Provision for integrating a current transformer.
Flexible Circuit Breaker Integration for 185 mm Busbar Systems
Busbar adapters provide a secure mechanical and electrical interface between switching devices and power distribution busbars. The Wöhner 32742 allows compatible moulded-case circuit breakers to be installed directly onto a 185 mm busbar system, helping reduce wiring requirements and simplify switchboard construction.
Its universal design supports compatible circuit breakers from manufacturers including ABB, Allen-Bradley, Eaton, Schneider Electric, Schrack and Siemens. The available current transformer integration also makes the adapter suitable for installations requiring current measurement, monitoring or energy management.
Typical Applications
- Industrial low-voltage switchboards.
- Power distribution panels.
- Motor control centres.
- Moulded-case circuit breaker installations.
- Industrial machinery and OEM equipment.
- Energy monitoring and current measurement systems.
