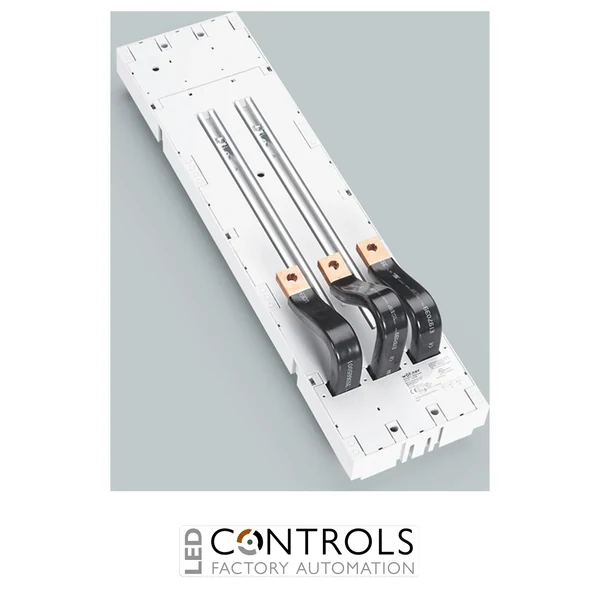

Why Choose the Wöhner 32745 EQUES 185Power Busbar Adapter?
The Wöhner 32745 is a high-performance 630 A universal busbar adapter from the Wöhner EQUES 185Power range, designed for mounting compatible moulded-case circuit breakers directly onto industrial busbar systems. Featuring a bottom CrossLink® clamp connection, the adapter provides a secure, drill-free installation while simplifying panel assembly for OEMs, switchgear manufacturers and industrial electrical contractors.
Designed for demanding low-voltage power distribution applications, the Wöhner 32745 supports devices with a 43 to 46 mm phase spacing and is compatible with busbars measuring 30 × 10 mm to 120 × 10 mm. Its robust construction, compact footprint and integrated provision for current transformer installation make it ideal for modern electrical distribution systems.
With a 630 A IEC and UL rated current, 800 V AC IEC operating voltage and 1000 V AC/DC UL rating, the Wöhner 32745 delivers dependable performance for industrial switchboards, motor control centres and power distribution panels.
Key Advantages
- Universal 630 A busbar adapter for industrial power distribution.
- Part of the advanced Wöhner EQUES 185Power system.
- Bottom CrossLink® clamp connection enables drill-free installation.
- Supports devices with 43 to 46 mm phase spacing.
- Compatible with busbars from 30 × 10 mm to 120 × 10 mm.
- Halogen-free construction with recognised UL approvals.
Key Features
- Wöhner EQUES 185Power busbar adapter.
- 630 A IEC and UL rated current.
- 800 V AC IEC operating voltage.
- 1000 V AC/DC UL rated voltage.
- Bottom CrossLink® clamp connection.
- Suitable for 43 to 46 mm phase spacing.
- Provision for current transformer integration.
- Can be mounted over busbar supports with or without CrossLink® touch-safe protection covers.
Reliable Drill-Free Mounting for Industrial Busbar Systems
The Wöhner 32745 provides a secure electrical and mechanical connection between compatible moulded-case circuit breakers and 185 mm busbar systems. Its CrossLink® clamp connection allows fast installation without drilling busbars, helping reduce assembly time while maintaining excellent electrical performance.
Designed for industrial switchgear and power distribution equipment, the adapter supports current transformer integration and is compatible with a wide range of MCCBs from leading manufacturers, making it an excellent choice for new installations and retrofit projects.
Typical Applications
- Industrial switchboards.
- Power distribution panels.
- Motor control centres.
- Moulded-case circuit breaker installations.
- OEM machinery and automation equipment.
- Industrial energy distribution systems.
