Why Choose the Wöhner 32749 EQUES 185Power Busbar Adapter?

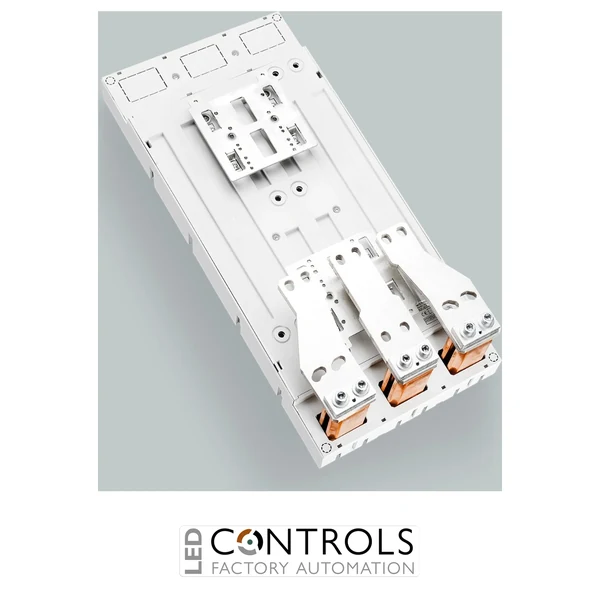

The Wöhner 32749 is a heavy-duty 1150 A busbar adapter from the Wöhner EQUES 185Power range, designed specifically for mounting Siemens 3VL7 (1250 A) moulded-case circuit breakers onto industrial 185 mm busbar systems. Featuring a bottom system connection with a changed phase arrangement, it provides a reliable and space-efficient solution for high-current power distribution applications.
Designed for switchgear manufacturers, OEMs and industrial panel builders, the Wöhner 32749 enables direct installation onto busbars measuring 30 × 10 mm to 120 × 10 mm. Its robust construction supports dependable electrical performance while simplifying assembly within low-voltage distribution systems.
With a 1150 A IEC rated current, 690 V AC operating voltage and compliance with IEC 61439-1 and UL 508, the Wöhner 32749 is an ideal solution for demanding industrial switchboards and power distribution installations. Please note this model is no longer available from the manufacturer.
Key Advantages
- Heavy-duty 1150 A busbar adapter for industrial power distribution.
- Designed specifically for Siemens 3VL7 (1250 A) circuit breakers.
- Bottom system connection with changed phase configuration.
- Compatible with busbars from 30 × 10 mm to 120 × 10 mm.
- Complies with IEC 61439-1 and UL 508.
- Suitable for demanding switchgear and electrical distribution applications.
Key Features
- Wöhner EQUES 185Power busbar adapter.
- 1150 A IEC rated current.
- 690 V AC IEC operating voltage.
- 800 V DC IEC operating voltage.
- Designed for Siemens 3VL7 1250 A moulded-case circuit breakers.
- Bottom connection to the busbar system.
- Changed phase arrangement.
- Industrial-grade mechanical construction.
Reliable High-Current Mounting for Siemens Circuit Breakers
The Wöhner 32749 provides a secure electrical and mechanical interface between Siemens 3VL7 moulded-case circuit breakers and 185 mm busbar systems. Its high current capacity and industrial approvals make it suitable for demanding low-voltage power distribution applications where dependable performance is essential.
Designed as part of the EQUES 185Power platform, the adapter helps simplify switchboard construction while maintaining high electrical performance and mechanical stability. This model is intended for installations where a changed phase arrangement and bottom system connection are required.
Typical Applications
- Industrial switchboards.
- Power distribution panels.
- Motor control centres.
- Siemens 3VL7 circuit breaker installations.
- OEM machinery and process equipment.
- High-current industrial electrical distribution systems.
