Why Choose the Wöhner 32756 EQUES 185Power Busbar Adapter?

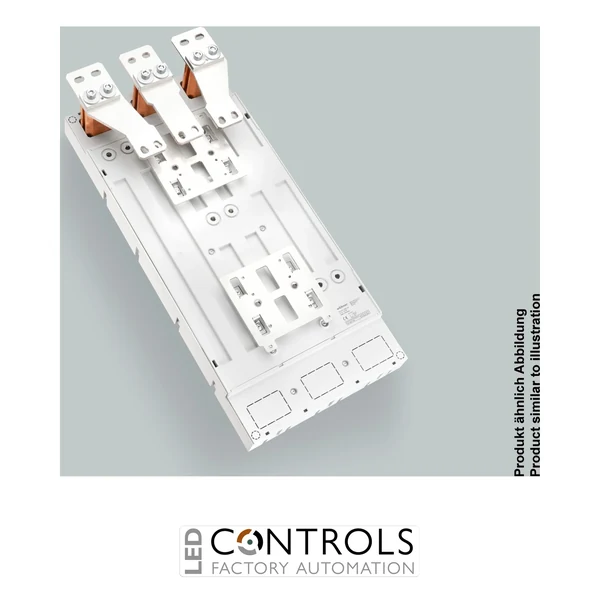

The Wöhner 32756 is a heavy-duty 1500 A busbar adapter from the Wöhner EQUES 185Power range, designed specifically for mounting Schneider Electric Compact NS1600 and ComPacT NS1600 circuit breakers directly onto 185 mm busbar systems. Featuring a top clamp connection, it provides a secure mechanical and electrical interface while simplifying switchboard assembly and reducing installation time.
Designed for industrial switchgear manufacturers, panel builders and OEMs, the adapter mounts directly onto flat busbars measuring 30 × 10 mm to 120 × 10 mm. Its robust construction supports reliable long-term operation in demanding low-voltage power distribution systems.
With a 1500 A IEC rated current, 800 V AC/DC operating voltage and compliance with IEC 61439-1:2020 and UL 508, the Wöhner 32756 is an excellent solution for high-current industrial distribution applications.
Key Advantages
- Heavy-duty 1500 A busbar adapter.
- Designed specifically for Schneider Electric Compact NS1600 and ComPacT NS1600.
- Top clamp connection for fast, secure installation.
- Compatible with busbars from 30 × 10 mm to 120 × 10 mm.
- Part of the modular Wöhner EQUES 185Power system.
- Certified to IEC 61439-1:2020 and UL 508.
Key Features
- Wöhner EQUES 185Power busbar adapter.
- 1500 A rated current.
- Compatible with Schneider Electric Compact NS1600 and ComPacT NS1600.
- Top system connection.
- Clamp-contact connection technology.
- Suitable for 185 mm busbar systems.
- Supports flat busbars from 30 × 10 mm to 120 × 10 mm.
- Industrial-grade mechanical construction.
Reliable High-Current Integration for Schneider Electric NS1600
The Wöhner 32756 provides a dependable interface between Schneider Electric Compact NS1600 circuit breakers and Wöhner's 185Power busbar system. Direct mounting onto the busbars eliminates unnecessary cabling while helping create compact, organised switchboard layouts with improved installation efficiency.
Its high current rating, international approvals and compatibility with multiple flat-busbar widths make the adapter ideal for industrial power distribution systems, OEM equipment and main low-voltage switchboards requiring reliable high-current protection.
Typical Applications
- Industrial switchboards.
- Main low-voltage distribution panels.
- Schneider Electric Compact NS1600 installations.
- OEM machinery and process equipment.
- Power distribution systems.
- Industrial infrastructure projects.
