Why Choose the Wöhner 32763 EQUES 185Power Busbar Adapter?

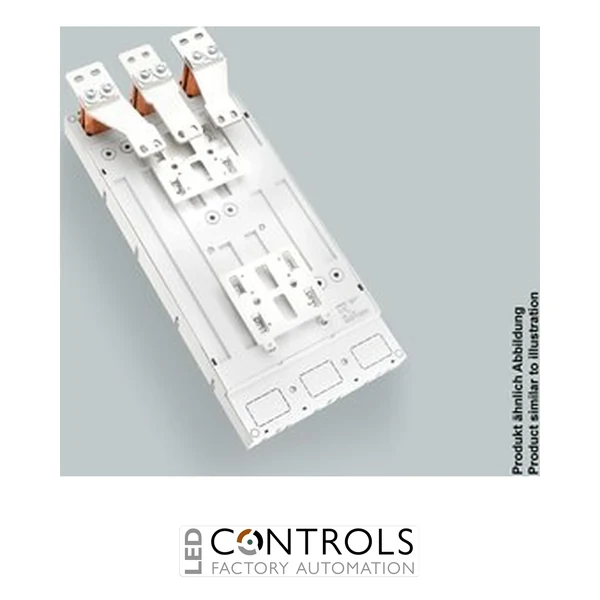

The Wöhner 32763 is a robust 1000 A busbar adapter from the Wöhner EQUES 185Power range, designed for mounting Eaton NZM4 630 A, 800 A and 1000 A moulded-case circuit breakers directly onto a 185 mm busbar system. Featuring a top clamp connection, it enables fast, drill-free installation while providing a secure mechanical and electrical connection.
The adapter is compatible with flat busbars measuring 30 × 10 mm to 120 × 10 mm, making it suitable for a wide variety of industrial low-voltage power distribution applications. As part of the modular EQUES 185Power platform, it helps simplify switchboard construction while maintaining a compact and organised layout.
With a 1000 A IEC rated current, 800 V AC/DC rated voltage, and approvals to IEC 61439-1:2020 and UL 508, the Wöhner 32763 is an ideal solution for demanding industrial switchboards and OEM equipment.
Key Advantages
- Heavy-duty 1000 A busbar adapter.
- Designed for Eaton NZM4 630 A, 800 A and 1000 A circuit breakers.
- Top clamp connection for quick, drill-free installation.
- Compatible with busbars from 30 × 10 mm to 120 × 10 mm.
- Part of the modular Wöhner EQUES 185Power system.
- Certified to IEC 61439-1:2020 and UL 508.
Key Features
- Wöhner EQUES 185Power busbar adapter.
- 1000 A rated current.
- Compatible with Eaton NZM4 630 A, 800 A and 1000 A MCCBs.
- Top clamp connection.
- Suitable for 185 mm busbar systems.
- Compatible with flat busbars from 30 × 10 mm to 120 × 10 mm.
- Industrial-grade construction.
- Supports integration of current transformers within the device.
Reliable Integration for Eaton NZM4 Circuit Breakers
The Wöhner 32763 provides a dependable interface between Eaton NZM4 moulded-case circuit breakers and the Wöhner 185Power busbar system. Its clamp-contact design eliminates the need for drilling busbars, helping reduce installation time while delivering a compact and service-friendly switchboard layout.
The adapter also allows current transformers to be integrated within the assembly, making it suitable for industrial installations requiring energy monitoring, protection and efficient high-current power distribution.
Typical Applications
- Industrial switchboards.
- Main low-voltage distribution panels.
- Eaton NZM4 630 A, 800 A and 1000 A installations.
- OEM machinery and industrial equipment.
- Commercial and industrial power distribution.
- High-current feeder and outgoing circuits.
