Why Choose the Wöhner 32780 Busbar Adapter?

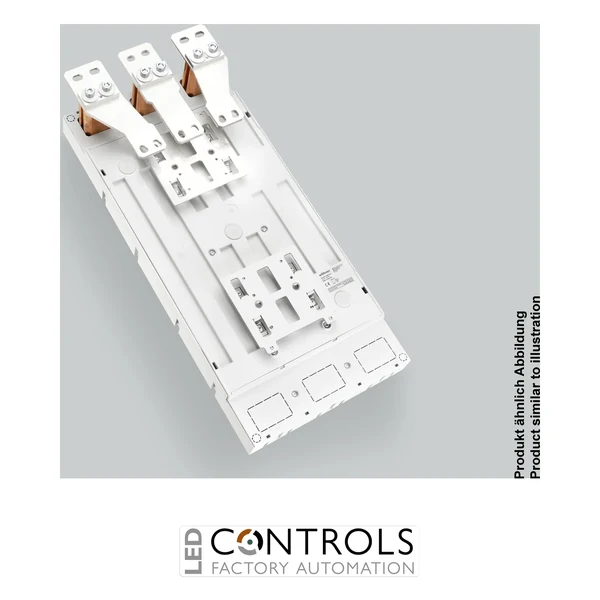

The Wöhner 32780 is a heavy-duty EQUES®185Power busbar adapter engineered for mounting Eaton NZM4 (1600 A) and Siemens 3VL8 (1600 A) moulded case circuit breakers directly onto industrial busbar systems. Designed for demanding low-voltage power distribution applications, it provides a secure mechanical and electrical connection while simplifying switchgear assembly and maintenance.
Part of the proven Wöhner 185Power system, the adapter features a robust top and bottom screw connection and is compatible with copper busbars measuring 30, 40, 60, 80, 100 and 120 × 10 mm. It is designed for high-current installations with a rated current of 1400 A and a rated operating voltage of up to 800 V AC.
Designed for panel builders, switchgear manufacturers and OEM machine builders, the Wöhner 32780 provides a dependable solution for integrating high-capacity circuit breakers into modern power distribution systems. It is not suitable for installations using CrossLink protection modules.
Key Advantages
- High-current 1400 A busbar adapter.
- Designed for Eaton NZM4 (1600 A) and Siemens 3VL8 (1600 A) circuit breakers.
- Compatible with the Wöhner EQUES®185Power system.
- Top and bottom screw connection for secure installation.
- Suitable for multiple copper busbar sizes.
- Ideal for industrial switchgear and power distribution applications.
Key Features
- Manufacturer: Wöhner.
- Series: EQUES®185Power.
- Product type: Busbar adapter.
- Rated current: 1400 A.
- Rated operating voltage: 800 V AC.
- Top and bottom screw connection.
- Compatible with 30, 40, 60, 80, 100 and 120 × 10 mm copper busbars.
- Designed for industrial low-voltage power distribution systems.
Reliable High-Current Busbar Integration
Busbar adapters provide an efficient method of mounting moulded case circuit breakers directly onto busbar systems, reducing installation time while improving space utilisation and electrical reliability. They are widely used in modern switchboards where compact, high-current distribution is required.
The Wöhner 32780 has been developed for demanding industrial environments where secure mounting, high current carrying capacity and dependable long-term performance are essential.
Typical Applications
- Industrial switchgear.
- Main low-voltage distribution boards.
- Motor control centres.
- Commercial power distribution systems.
- OEM electrical equipment.
- Industrial automation installations.
