Why Choose the Wöhner 32786 Busbar Adapter?

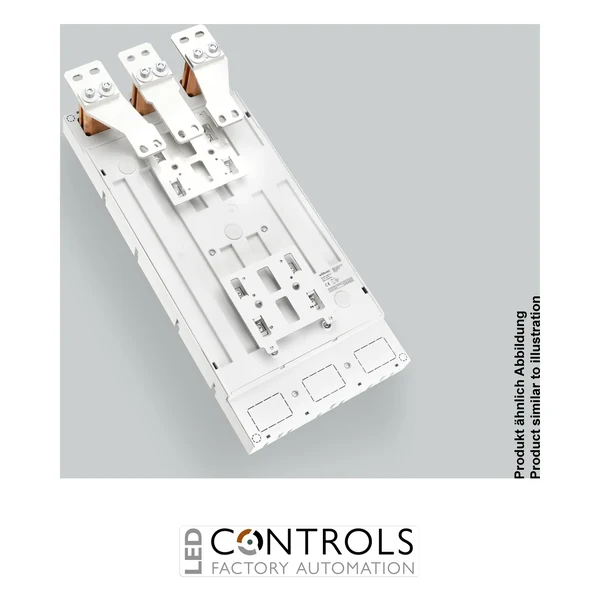

The Wöhner 32786 is a robust EQUES®185Power busbar adapter designed for mounting ABB Tmax T6, XT6, T7, XT7 (800 A), ABB Emax E1.2 (800 A) and Siemens 3VA27 (800 A) moulded case circuit breakers directly onto industrial busbar systems. Engineered for low-voltage power distribution, it provides a secure mechanical and electrical connection while simplifying switchgear assembly and maintenance.
Part of the proven Wöhner EQUES®185Power range, the adapter features a top and bottom screw connection for drilled busbars and is compatible with copper busbars measuring 30, 40, 60, 80, 100 and 120 × 10 mm. It has a rated current of 800 A and is designed for demanding industrial power distribution applications.
Designed for panel builders, OEMs and switchgear manufacturers, the Wöhner 32786 provides a reliable and space-saving method of integrating high-performance circuit breakers into modern busbar systems. It is not suitable for systems fitted with CrossLink® protection modules.
Key Advantages
- Rated current of 800 A.
- Designed for ABB Tmax T6, XT6, T7, XT7, Emax E1.2 and Siemens 3VA27 circuit breakers (800 A).
- Compatible with the Wöhner EQUES®185Power system.
- Top and bottom screw connection for secure installation.
- Suitable for multiple copper busbar sizes.
- Ideal for industrial switchgear and power distribution systems.
Key Features
- Manufacturer: Wöhner.
- Series: EQUES®185Power.
- Product type: Busbar adapter.
- Rated current: 800 A.
- Top and bottom screw connection.
- Compatible with 30, 40, 60, 80, 100 and 120 × 10 mm copper busbars.
- Designed for ABB and Siemens 800 A circuit breakers.
- Suitable for industrial low-voltage power distribution systems.
Designed for Reliable Busbar Integration
Busbar adapters provide a fast and dependable method of mounting moulded case circuit breakers directly onto busbar systems, reducing wiring complexity while improving installation efficiency and panel space utilisation. They are widely used in modern industrial switchboards where compact, high-current distribution is required.
The Wöhner 32786 forms part of the EQUES®185Power product range, which enables quick and reliable mounting of circuit breakers up to 1600 A on 185 mm busbar systems for feeder and tap-off applications.
Typical Applications
- Industrial switchgear.
- Main low-voltage distribution boards.
- Motor control centres.
- Commercial electrical installations.
- OEM power distribution equipment.
- Industrial automation systems.
